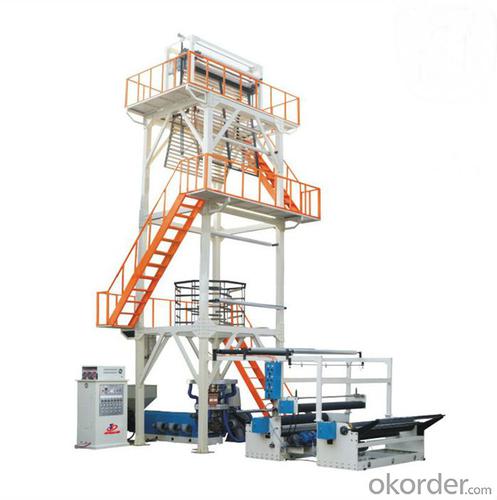

HDPE LDPE LLDPE Blown Film Machine Garment Bag Making Machine
Specifications:
1.High output
2.Low price
3.CE .SGS and ISO certificate
4.Good after-sales services
5.Flexible Payment Term
Technical Parameter of Blown Film Machine :
Main Technical Variables | ||||
MODEL | GD-45A | GD-50A | GD-45A-2 | GD-55A-2 |
SUITABLE MATERIAL | HDPE LDPE | |||
FILM WIDTH(mm) | 300-600 | 300-800 | 100-400x2 | 100-500x2 |
FILM THICKNESS(HD) | 0.009-0.05 | 0.009-0.05 | 0.009-0.05 | 0.01-0.05 |
0.025-0.11 | 0.025-0.11 | 0.025-0.11 | 0.025-0.11 | |
MAX.EXTRUSION OUTPUT(HD) | 40kg/hr | 50kg/hr | 45kg/hr | 75kg/hr |
45kg/hr | 70kg/hr | 60kg/hr | 100kg/hr | |
EXTRUDER | ||||
EXTRUDER | φ45 | φ50 | φ45 | φ55 |
SCREW L/D LENGTH | 28:1 | |||
SCREW MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER COOLING | 370w×2 | 370w×2 | 550w×2 | 550w×3 |
DRIVING MOTOR(Kw) | 11 | 15 | 15 | 22 |
TEMPERATURE CONTROL | 3 | 3 | 3 | 4 |
AVERAGE POWER-CONSUME(Kw) | 18 | 26 | 18 | 30 |
TYPE OF DIE | ||||
DIE SIZE(HD) | 60/80 | 80/100 | 45/60×2 | 60/80×2 |
150 | 180 | 120×2 | 150×2 | |
TEMPERATURE CONTROL | 3 | 3 | 3×2 | 3×2 |
AIR RING | 1 | 1 | 1×2 | 1×2 |
AIR BLOWER(Kw) | 1.5 | 2.2 | 1.5×2 | 2.2×2 |
CENTER STEADY STICK(HD) | 2 | |||
TAKE-UPUNIT | ||||
PINCH ROLLER (DIA. WIDTH)mm | φ165×650 | φ165×850 | φ 165×450×2 | φ165×500×2 |
HEIGHT ADJUSTABLE TYPE | 700mm | |||
TAKE-UP SPEED(m/min) | 10-100 | 10-100 | 10-100 | 10-100 |
TAKE-UP MOTOR(kw) | 0.75 | 1.5 | 0.75x2 | 0.75x2 |
WINDING UNIT | ||||
TYPE | SURFACE FRICTION TYPE | |||
WINDING MOTOR(N.m) | 5 | 10 | 5 -2 | 5 -2 |
WINDING SPEED(m/min) | 10-100 | 10-100 | 10-100 | 10-100 |
COVER DIMENSION(m) | 5.0×2.0×4.1 | 5..2×2.2×4.5 | 5.5×2.8×4.1 | 5.8×3.2×4.5 |
OPTIONAL EQUIPMENT:1) AUTO LOADER 2) EMBOSSING ROLLER 3) FILM SURFACE TREATER 4) FLEXOGRAPHIC PRINTING MACHINE |
We have perfect technical inspection facilities, advanced quality-control system and great production capacity, all which ensure good quality as well as timely delivery.
- Q:I opened a small youfang! The oil used in centrifugal oil filters is always mixed
- [1] centrifugal oil filter itself is not high filtration accuracy, dehydration capacity is not strong, the filtration accuracy is not very high, of course, filtering the vast majority of edible oil is enough. You said the situation there may be problems (centrifugal force centrifuge centrifuge is not enough, the rotation frequency is too low, etc.) or may lead to equipment failure, did not achieve the desired results, so please contact you to sell you the centrifugal oil filter, so that they give a reasonable explanation.
- Q:Where has the waste lubricating oil to come in, it is the oil filter of the finished oil
- Waste lubricating oil is used after the deterioration has been unable to use the oil, oil filter main machine is mainly pure physical filtration, filtration, filtration, removal of impurities of water gas, waste oil emulsion breaking, can recover after filtration DY lubricating oil vacuum oil filter function, cleanliness, moisture, gas content so, the acid value can be restored to the new oil standards, this time can be put into repeated use.
- Q:Causes of heating in condensing tank of vacuum oil filter
- From which we can see, from the inside out after the vacuum flash tower is divided into two paths, one path through the filtered oil pump separated; the other way separated water and gas to the gas separation device (jar), and then through the condenser (usually air cooling or water cooling), after cooling, gas and water discharge.
- Q:What kind of scheme is better for the oil filter except the impurity?
- Generally speaking, there are three basic oil impurities: solid impurities (with metal shavings and carbon black particles, etc.), regardless of hydraulic oil, lubricating oil, gear oil and other impurities, will greatly reduce the damage of gears surface seriously affect the service life of equipment and oil production safety performance!
- Q:What is the working principle of the oil filter?
- There is a rotor with double jet nozzle in its interior, only produced by oil pressure to provide the driving force. After opening, the pump will be sent to the oil tank inside the rotor, the rotor to be full of oil after the rotary table lower nozzle jet, which creates a driving force for the high-speed rotation of the rotor. Its speed can reach more than 4000-6000r.p.m, the power generated by the gravity of more than 2000 times, the principle of centrifugal force directly drive impurities from the oil in the separation. Hard, sharp, abrasive metal substance, plus residual products that cause parts to wear or deteriorate, even the size of 1 m can be removed. The impurities separated the impurities in the rotor of the collection cover, just cleaned regularly. In addition, because the proportion of water than oil, under the action of centrifugal force, the water from the oil separated from the existing rotor inner product oil receiver and only can be removed during cleaning. The filtered oil flows back into the tank directly by gravity.
- Q:The first filter is not clear! Very cloudy! The second time is almost enough! Does it still have anything to do with temperature? The filtered peanut oil! The virgin oil, which has just been squeezed out of the machine, has not been filtered by vacuum!
- Oh, not the precision is not enough, centrifugal oil filter in general circumstances to filter a few times in order to achieve results
- Q:Points for attention of vacuum oil filter
- Application and notice of vacuum oil filter2.1 because the vacuum oil filter is used less (one or two years only last time), therefore, the operator should read the instruction carefully before operation, and must be familiar with the operation method of the oil filter.2.2 operate strictly according to the order of instructions and strictly control the oil level of the tank to prevent the oil from being absorbed into the vacuum pump.2.3, the oil temperature is generally controlled at 40~60 degrees (except for instructions).2.4, the use of oil filters are often checked, the oil pipe joints, valves are blocked, oil spills, such as the breakdown should immediately stop inspection, processing. Anti static earthing measures shall be adopted for the oil filter and the metal piping of the oil system.2.5 during the operation of the vacuum oil filter, when the outlet oil pressure is greater than 0.3Mpa, the reasons should be checked. When the plug is stopped, the filter components can be stopped, cleaned or replaced.2.6, operators must be strictly responsible for the work, serious and responsible, on duty, shall not do other irrelevant things.
- Q:What happens when the oil filter is powered off?
- After the power cut, the whole performance of the oil filter is affected.First, the impact on the pump and motor: easy to cause abnormal wear and tear, reduce its service life.
- Q:Comparison of performances of several oil filters
- Features: good effect of oil - containing water on the separation effect of the separation of impurities; the oil is poor; it needs to be equipped with precision filter to filter out impurities; the installation and maintenance is troublesome,.4 ionization type oil filter is using the electric field intensity of water droplets, to weaken the strength of interfacial film. The water droplets collision coalesce into large particles, sedimentation and separation. Features: good - containing water on the separation of oil - water separation effect; the oil rate is low when the effect is poor; the demulsifying ability is not very strong,.5 coalescence type oil filter is based on the latest oil coalescence and separation principle as the basis liquid filtration and dewatering equipment. It has the features: high precision filtration, high efficient dewatering, good filtering effect; the demulsifying ability is very strong; the impurity removal effect is very good, and is suitable for high oil content in the purification of large and small flow system; the flexible movement, operation Quick and easy (one button start), free of maintenance
- Q:Fig. 1 electrical control diagram of lubricating oil vacuum oil filter lv_80
- Besides the general bought oil filter, as long as the regular manufacturers will have the instructions, the above detailed parameters of oil filter, and the electrical principle diagram and electrical control chart, do you buy the oil filter machine instructions are not even,. If so, either you choose to return it, or you call the person who sold it to you, and let them come home to deal with the problem, which is the minimum after-sales service.
