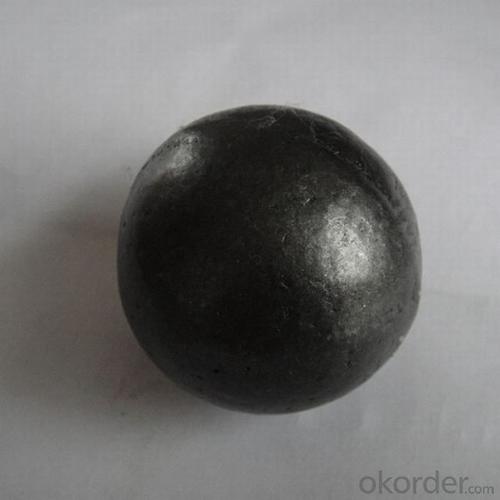

Grinding Ball Made in China in Low Price and High Hardness and Low Breakage Rate

Ref Price:
Loading Port:
Qingdao Port
Payment Terms:
TT or LC
Min Order Qty:
25M.T. m.t.
Supply Capability:
200000M.T./Year m.t./month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

1.Chemical Composition of Grinding Ball Made in China in Low Price and High Hardness and Low Breakage Rate

Brand

C

Mn

Si

Cr

S

P

V

1A

0.37-0.55

0.50-1.0

0.17-0.47

0.80-1.2

≤0.035

≤0.035

2A

0.7-1.00

0.7-1.0

≤0.025

0.4-0.8

≤0.025

≤0.025

3A

0.45-0.65

0.7-0.8

1.5-1.8

0.77-1.0

≤0.006

≤0.025

45

0.40-0.55

0.50-0.85

0.71-0.47

≤0.25

≤0.025

≤0.025

65

0.55-0.70

0.80-1.25

0.17-0.47

≤0.25

≤0.035

≤0.035



2. Hardness of Grinding Ball Made in China in Low Price and High Hardness and Low Breakage Rate

1A

2A

3A

45

65

Superficial

>60HRC

>60HRC

>60HRC

>58HRC

>60HRC

Volumetric

>58HRC

>60HRC

>60HRC

>55HRC

>60HRC



3.Feature of Grinding Ball Made in China in Low Price and High Hardness and Low Breakage Rate
1) In general, grinding steel ball has high hardness: surface hardness to 58-65 HRC, volume hardness of 56-65 HRC
2) impact toughness high: impact toughness more than 12 J / cm2.
3) broken rate is low: the actual broken rate is not higher than 0.5%.
4) loss of grinding forged steel ball round rate is low.



Grinding Ball Made in China in Low Price and High Hardness and Low Breakage Rate

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:How to cast iron and wrought iron collocation
2, listen: Pig beating sound boring, wrought iron beating sound loud.
Q:What is normalizing, annealing, tempering, quenching? What is the difference between forging parts and casting parts?
According to the requirements of the workpiece annealing, there are many kinds of annealing process specifications, such as full annealing, spheroidizing annealing and stress relieving annealing. Steel the steel quenching is heated to the critical temperature Ac3 (hyposteel) or Ac1 (hypereutectoid steel) above a certain temperature, holding time, so that all or part of 1 Austenitic, then the cooling rate is greater than the critical cooling rate of fast cooling to below Ms (or near Ms isothermal) of martensite the body (or bainite transformation) heat treatment process. Aluminum alloys, copper alloys, titanium alloys, tempered glass and other materials are usually treated by solid solution or heat treatment with rapid cooling process. Tempering is a heat treatment process where the workpiece is hardened and heated to a temperature below AC1, which remains cool for a certain period of time and then cools to room temperature. Tempering generally followed by quenching, the purpose is: (a) to eliminate the residual stress caused by quenching, prevent deformation and cracking; (b) hardness, strength, plasticity and toughness of workpiece is adjusted, to use performance requirements; (c) the size of organization and stability, ensure the accuracy improvement; (D) and to improve the processing performance. Tempering is therefore the last important step in obtaining the desired properties of the workpiece. According to the tempering temperature range, tempering can be divided into low temperature tempering, medium temperature tempering and high temperature tempering. This answer is recommended by the questioner
Q:How to judge whether the casting is qualified?
According to different casting process and parts materials, each has relevant standards, can be found online;
Q:The difference between sheet metal and casting parts
Casting parts are made by casting (followed by a variety of processing), the shape can be simple, can also be very complex, usually large parts, as a base, bed, work table, and so on, good seismic performance.
Q:What should I pay attention to when designing a casting structure?
The basic structure of unit 3 in the design of metal casting casting and its parameters are selected, usually should also pay attention to: (1) because of the metal type heat quickly, so the metal type casting minimum wall thickness should be bigger than the sand casting casting casting; (2) the inner wall of the internal ribs and the thickness of a should be connected the outer wall thickness of 0.6 to 0.7, or as the inner wall (rib) cold slowly, cracks in the wall at the junction in the casting shrinkage; (3) to prevent generating white grey cast iron, in addition to taking measures in the process, must make the wall thickness is not too thin (some information that cast fillet at the corner of the wall thickness of 15mm or more, with metal casting casting must be in the corner, for Aluminum Alloy, metal casting magnesium alloy castings shall not be less than 3 ~ 4m; (4) because of the metal type and the core that, for To facilitate the extraction of castings and casting out type, slope casting should be suitably large than sand casting metal casting, the general should be 30% ~ 50%, it should be pointed out that in addition to the height of the slope of casting size and alloy type, wall, is also related to the casting surface position, where the cooling and contraction of the metal type the surface of casting surface can be designed from the tendency of small inclination, while casting shrinkage tend to be pressed on the surface of metal casting type should be given greater inclination.
Q:Casting parts in rocker arm drilling, reaming, roughness, block.
Radial drilling machine can achieve boring, reaming function, but as much as you want, according to your requirements and material to determine!
Q:We are small castings, the need for surface treatment of shot blasting machine, about how much?
The choice of shot blasting machine, this is according to the workpiece size, yield, whether can collision, and the working time and other factors considered, while the price of different blasting machine are not the same, but the vast majority of small castings used crawler shot blasting machine, according to the comprehensive consideration of factors such as yield, size of workpiece commonly used on the market the crawler shot blasting machine has Q324, Q326, Q328, Q3210, and each time the amount of their treatment were 125KG, 200KG, 400KG, 600KG, the specific use of what types also need to be determined according to the actual situation
Q:What are the causes of pitting on the surface of a precision casting?
The quality of the shell surface is out of order. Or shot blasting out of question.
Q:Sealing test of casting parts 5
Precise and tight sealing of the surface to which the test piece is to be tested, equipped with an airtight test instrument, and an electrical control system. You can complete automated testing equipment
Q:When there is no flaw detection for large casting parts, is there any crack inside?
According to the industry standards, within the scope of the standard requirements to determine whether the product is qualified
CDE is one of the largest factory specialized in producing Forged Grinding Balls and Cast Grinding Balls in China. Our annual production of grinding balls is about 100,000 ton. Our company has passed ISO9001: 2000 quality system authentication. We mainly export our grinding balls to Chile, Peru, Ghana, Argentina, Philippine, South-Africa, Italy, Japan, Korea, India, Australia etc more than 20 countries and areas.

1. Manufacturer Overview

Location Shandong, China
Year Established 1971
Annual Output Value US$50 Million - US$100 Million
Main Markets Domestic Market, Southeast Asia, South Asia, North America, South America
Company Certifications ISO9001;IS014001 Certificate

2. Manufacturer Certificates

a) Certification Name
Range
Reference
Validity Period

3. Manufacturer Capability

a)Trade Capacity
Nearest Port Qingdao Port
Export Percentage
No.of Employees in Trade Department 6-10 People
Language Spoken: English, Chinese, Korean
b)Factory Information
Factory Size: Above 60,000 square meters
No. of Production Lines Above 10
Contract Manufacturing Forged Grinding Ball,Cast Grinding Ball,Casting Cylpebs,Grinding Rods,Decorative Steel Ball
Product Price Range Average
