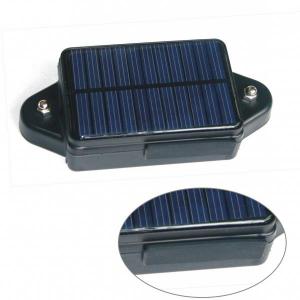

GPS Tracker With Solar Power & Waterproof & Magnet Pin

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT or LC
Min Order Qty:
1 Set unit
Supply Capability:
5000 Sets Per Month unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:



Features of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Technical Features

Solar panel can enlarge standby time up to 50%

Extra strong magnetic pin ( over 10kgs *2 )

IP56 water-proof design

Real time upload location to website

Extra big 4000 mAH rechargeable LI battery

Portable design can be used for vehicle or moving object

Sending SMS or calling the tracker can locate and reply SMS with Google map link or location in test description

Upload battery life 2 days, standby time over 15 days

Upload interval time can be set by user

Upload time can be set to local time

No platform service charge ( our free tracking platform )

SIMCOM GSM module (4 band) &GPS module (Sirf-star or MTK chipset)

GSM and GPS antenna are embedded in the tracker

GSM and GPS antenna are embedded in the tracker

Built in memory to record track without GSM network

Uploading is controlled by shock sensor to save battery

Shock sensor can be used as car shock & move alarm

Visiting website can tracker or playback history tracking

Platform use free Google map, it is not necessary to pay any map charge

Can preset 3 phone numbers by SMS

Send alert of over range to platform when it go out the restricted area

Send alert of over speed to platform when it exceeds the restricted speed

Easy to hidden, used for cars,bus, truck, container, taxi, rent cars,moving equipment etc.

Competitive Advantages

Solar Panel Power Supply

Water-proof Design

Big Battery 4000 mAH

Extra Strong magnetic pin

No platform service charge

Can Set Upload Interval



Specifications of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Appearance

Dimension

87mm*60mm*28mm

Weight

200g

System

GPS Module

MTK or Sirf-star

Normal Operation Temperature

-20C to +55C

Restricted Operation Temperature

-35C to +70C

Storage temperature

-40C to +80C

GSM Frequency

850/900/1800/1900 MHz

GSM & GPS Antenna

Built-in

GPS Channels

32

Locate Accuracy

10~20m

GPS Start Time (open sky)

Hot Start : 1 sec, Cold Start : 36sec

Standby Current

2-3mA

Tracking Current

<100mA

Charge Voltage

5V

Battery

Li-ion 4000mAh

Accessories

car charger / 12/24V DC adapter / USB wire / manual



Tracking platform ofGPS Tracker With Solar Power & Waterproof & Magnet Pin



 Tracking platform of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Certificates ofGPS Tracker With Solar Power & Waterproof & Magnet Pin



 Certificates of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Workshop ofGPS Tracker With Solar Power & Waterproof & Magnet Pin



 Workshop of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Testing Equipment of GPS Tracker With Solar Power & Waterproof & Magnet Pin



 Testing Equipment of GPS Tracker With Solar Power & Waterproof & Magnet Pin



Shipment ofGPS Tracker With Solar Power & Waterproof & Magnet Pin



 Shipment of GPS Tracker With Solar Power & Waterproof & Magnet Pin

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Car GPS positioning system what line
Thrum to be used to protect the heat shrinkable tube, to ensure that it is not easy to fall off, no water. And then use waterproof adhesive tape binding, and the original car line bundled together.
Q:I gave my electric car installed GPS locator, this thing on the battery power consumption?
Not great, you should be estimated about 7 days without riding the electric car, you like this, if the car is put in the home, and was afraid of being stolen, you can set the background data upload frequency, the time is a little longer, try not to easily turn off the equipment installed to positioning and theft the;
Q:What is the role of the GPS locator GMSAnonymous browsing | 118 times
2, GMS certification is very difficult, if through this certification, it shows that the strength of the company's production OK
Q:Hello, not much, because it has a very low quiescent current!
There are a number of GPS locator is a remote sound, there are three ways to listen.The first is that you call the phone number on the device, you can automatically answer, there is a downside, that is, advertisers mistakenly call in, you can hear the sound of the car. Some cottage goods in order to save the cost of development, use this.
Q:How to find whether the car was installed GPS positioning
Now the GPS are generally connected to the battery; in the cab or under the dashboard has a small black box, the line picked on the line. If that kind of power supply can be easily sucked that kind of have to go to the garage.How to install:1, the car battery power is provided by battery cathode is received online, so you find a key in the closed door case, find a common line, the anode of the battery is directly connected to the vehicle frame and the ground can be so negative directly. GPS needs a power supply. Then the antenna will be fine.2, in general, will be positioned in the middle of the tracker to control the good point. Car GPS positioning tracker is divided into three types: wiring (as well as different functions, more functions, a little bit more complex wiring), OBD interface, with strong magnetic. The OBD interface is more convenient installation, like micro company T5S, just plug in the steering wheel below the OBD port can be. With strong magnetic, that is, there is a locator magnet, as long as the car in the adsorption of iron, can be positioned. Wiring a little trouble spots, to take the line, according to different functions to set an gt02a car like rice only positioning function, only the positive and negative two lines, pick up convenient; like the ACC line, relay line etc..The positioner need to insert a CDMA card, connected to the GPS antenna and CDMA antenna signal signal, power supply is connected with the car, can work, if you need to power off the oil, can also be the host power off the oil control line, you can achieve these two functions, the method of installing GPSONE car the following will be the main power line tracker GPS host and auto connect phone card inserted on the login platform ready to start positioning.
Q:What is the meaning of the GPS locator LBS?
It includes two meanings: the first is to determine the location of the mobile device or user; secondly, to provide various information services related to the location. Refers to the positioning of the various types of service systems, referred to as positioning services, and another called MPS-Mobile Position Services, also known as mobile location service system. As to find the current location of mobile phone users, and then find the name of mobile phone users at the current location within 1 km of hotels, cinemas, libraries, etc. the gas station in the city of Shanghai in the range of 6340 square kilometers and address. So LBS is to use the Internet or wireless networks, fixed users or mobile users, to complete the positioning and service two functions.
Q:How to pet dog (CAT) GPS positioning?
With a sharp peak wise good products, small volume light accuracy is also good. Can be waterproof, in the dark environment can automatically turn on the LED lights to facilitate the search, you can always check the location and set the electronic fence, and support the phone APP page short interest WeChat query alarm.
Q:What is the difference between a GPS positioning device, an external antenna, and a built-in antenna?
The frequency of the antenna determines its different uses, and the gain determines the signal. Generally speaking, because the volume of the external relationship is better than the built-in. GPS and GSM signal frequency is different, so can not mix.
Q:Millet 2 how to turn on or off the tracking positioning system.
Please go to settings - all settings - location services, you can turn on or off the GPS positioning service.On the phone status notification bar can be turned on or off directly.
Q:Motorcycle GPS locator which brand is good
Motorcycle GPS locator is simple, compact and compact, strong anti-interference, Baidu look at it, there are a lot of good GPS locator brand oh
Our company adheres to the” people-oriented” management philosophy and the implementation of "competition for posts," emphasizes on human resources development and matching to encourage the establishment of a reward system-oriented and focus on creating a positive and competitive atmosphere of harmony and achieve the company's goals and personal goals combined. Our company's consistent pursuit is to create the first Chinese GPS brand company and a top-notch performance , elect the best talents.

1. Manufacturer Overview

Location Guangzhou,China
Year Established 1994
Annual Output Value Above US$100 Million
Main Markets Latin America Northern Europ Southeast Asia
Company Certifications CE;FCC

2. Manufacturer Certificates

a) Certification Name
Range
Reference
Validity Period

3. Manufacturer Capability

a)Trade Capacity
Nearest Port Shenzhen
Export Percentage 1% - 10%
No.of Employees in Trade Department 100-500People
Language Spoken: English;Chinese
b)Factory Information
Factory Size: Above 50,000 square meters
No. of Production Lines Above 8
Contract Manufacturing OEM Service Offered;Design Service Offered
Product Price Range High;Average
