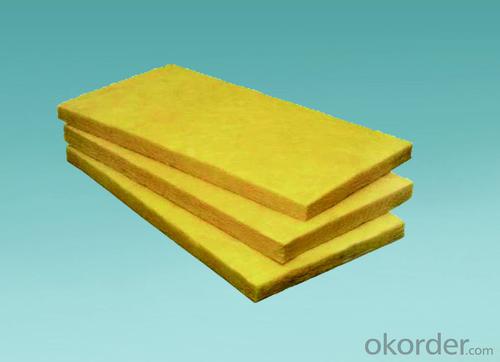

Good Quality Glass Wool Board For Building Heat Insulation

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT or LC
Min Order Qty:
3000 m²
Supply Capability:
10000000 m²/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Standard Size

Item

Unit

Index

Density

Kg/m3

32 - 96

Thickness

mm

25-100

Width

mm

600,1200

Length

mm

1200,2300,2400

Remark:

Other sizes available upon request  Facing materials can be applied upon request



We have organized several common questions for our clientsmay help you sincerely:

① How about your company

A world class manufacturer & supplier of fiber cement boardis one of the large-scale professional investment mineral production bases in China. Exported to markets in Asian, American, Middle East, African. OEM service available according to customer’s requirements.

②How to guarantee the quality of the products

We have established the international advanced quality management systemevery link from raw material to final product we have strict quality testWe resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.

③How long can we receive the product after purchase?

In the purchase of product within one week days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers. Commonly two weeks working days can be served.



Technical Data

Item

Unit

Index

Average Fiber Diameter

μm

5-7

Water Content

%

1

Grade of Combustibility

Non-Combustible Grade A

Thermal Conductivity

( 25℃)

W/mK

0.038- 0.045

Reshrinking Temp

250

Hydrophobic

%

98

Moisture Rate

%

5

Noise Resistant Coefficient (NRC)

0.75

Slag Inclusion Content

%

0.3

Application

Glass Wool are widely used in public, commercial and residential buildings as well as industrial plants, for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation, acoustic control and condensation control.

 DATA

Standard Size  Product Board

Size: L x W (mm) 600X1200, Thickness: 40- 100mm

Density: 60KG/M3- 150KG/M3

Good Quality Glass Wool Board For Building Heat Insulation

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the difference between imported glass wool and rock wool?
Glass wool is categorized into glass fiber, which is a manmade inorganic fiber. Glass wool is a material which fibering melting glass to form cottony shape. Its chemical composition belongs to the classification of glass, being an inorganic fiber. So, it is good shaped with small volume density, low thermal conductivity, good thermal insulation and sound absorption properties, great corrosion resistance as well as stable chemical performance. Rock wool board is a manmade inorganic fiber which employs basalt as the material and is produced by melting process at high temperatures, keeping light in weight and low in small thermal conductivity with the features of heat-absorbing and non-flammability.
Q:What is the thermal insulation material of glass wool?
It is a cotton-like material which has advantages of low thermal conductivity, chemical stability, good sound absorption. The glass wool is an inorganic fiber which has a excellent welding performance. Glass wool which is a man-made inorganic fiber fiberizes melten glass, it is a insulation material that has advantages of corrosion resistance, thermal insulation and small bulk density. I tell you that it belongs to glass in terms of chemical composition: The thermal insulation material, glass wool belongs to glass fiber.
Q:What is the difference between quartz wool and glass wool?
Quartz wool / glass wool / insulated cotton [Instrument]. Products introduction: quartz wool: it is used as the filler of analytical instruments or small reaction tubes in laboratory, or as the insulation material. Temperature resistance: about 1300 degrees. Specifications: 1 to 3um and 3 to 5um. Packaging:
Q:Can mineral wool, rock wool and glass wool thermal insulation be applied to inverted roofs?
And wall insulation material can be applied to all kinds of roofing. Glass curtain wall Steel structures are basically solid material hanging while facade walls need adhesive and fixation and other processes.
Q:What is the difference between red glass wool and yellow glass wool in terms of technical parameters?
The majority of glass wools are yellow, while glass wools with the color of red or other are called color glass wool which are rarely used.
Q:Who can tell me about the unit weight of glass wool board?
Glass wool has a good sound absorption performance in the high-frequency sound. The main factors affecting the centrifugal glass wool' sound absorption performance are thickness, density and air flow resistance, etc. Density is the weight per cubic meter of materials. 1. with the increase of thickness, the low frequency sound absorption coefficient significantly increases, but there is little change in the high frequency (high frequency absorption is always larger). 2. thickness is the same, the unit weight increases, the low frequency sound absorption coefficient also increases; but when the unit weight increases to a certain extent, the material becomes dense, the flow resistance is greater than the optimum flow resistance, sound absorption coefficient decreases.
Q:Which is the more commonly used thermal insulation material between thermal insulation glass silk wool and rock wool?
Glass wool is a little better in that it has a lighter volume-weight than rock wool and better water-resistance ability, but it is more expensive than rock wool a lot of density, waterproof performance is better than lighter than wool to wool, but glass wool is more expensive in price per unit. In terms of fireproof effect, rock wool is definitely superior to glass wool. Rock wool has a maximum temperature of 1100 ℃, whereas glass wool has only 600 ℃. In addition, if used in the external walls, since glass wool has a limited volume-weight, which can merely reach at 60 to 90 in general, but rock wool have a volume-weight up to 140, so present-day external walls will not employ glass wool in general. Instead, rock wool is usually available because it is a A-level fireproof material. Glass wool is slightly lower than roock wool in thermal conductivity, while rock wool has longer fiber length. As for prices, glass wool per ton is more expensive than rock wool, but if the price is measured by per square, glass wool then is cheaper than rock wool.
Q:How about the sound insulation performance of glass wool felts?
Fix the glass wool in the wall with pegs, then cover it with plywood, after laying up with wooden surface, nail the wood again.
Q:What is the fire rating of fireproof sound-insulating glass wool board?
Generally we do not use A1, A2 but A class, which is non-combustible levels. A level is higher than the B level. B-level is divided into B1and B2. B1 stands for flame retardant type and B2 combustible type. rock wool and glass wool both rates A class. secondly, Rockwool can endure high temperature of 800 degrees, glass wool 450 degrees.bulk density of rockwool is heavier than that of glass wool. And glass wool has better waterproof performance.
Q:What is the density of high-temperature glass fiber
Density 2.4 ~ 2.7g / cm3 Glass fiber is used as reinforced materials in reinforcing plastic. the biggest feature is strong tensile strength. standard tensile strength is 6.3 ~ 6.9 g / d,in a wet state 5.4 ~ 5.8 g / d. Density 2.54. Good heat resistance. the tensile strength remains unchanged even if the temperature reaches as high as 300℃. It is high duty electrical insulation material. It is also used for thermal insulating and fireproof. it is only corroded by concentrated alkaline,hydrofluoric acid and concentrated phosphoric acid.
