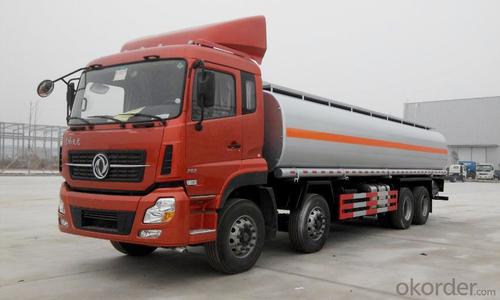

Fuel Tank Trucks 8X4 350p Heavy Oil Storage Tank
Emission Standard:Euro 2
Tire Type:Solid Tire
Tire Certification:ECE, GCC, ISO, DOT
Cabin:with One Sleeper or Without Sleeper
Volume of Tank:25000L, 30000L, 35, 000L, 40
Air Conditioner:A/C or Without A/C
Driving Type:LHD or Rhd
No. of Compartment:No. of 1/2/3/4/5/6 Compartments
Other Key Parts:Discharged Pump/ Discharged Valve/API Manhole
Pto:with 50# or 60# Pto
Packing:Waxed Before on Board
Production Capacity:1500 Unit/Month
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally
|Overall dimensions(L× W× H)||11990× 2500× 3750 ( mm )|
|Cab||Single row, 3 passengers allowed in cab|
|G. V. W.||31000(kg)|
|Engine & Chassis Specification|
|F/R wheel-base||2006, 2006/1850, 1850(mm)|
|Tyre||Standard equipped 11.00-20 18PRranhou tyre|
|Tank dimensions||9000× 2500× 1800(mm)|
|Tank material||Crabon steel Q235A, optional stainless steel & aluminium alloy|
|Tank thickness||5(mm), optional 6(mm)|
|Standard equipments||Single gravity flowing wareroom, no pump, two aluminium alloy openings, warerooms, liquid level indicator, pump, watch, spool, measurement gun, manhole, AIP valve and oil-gas recovery systerm and so on are optional.|
|Tank material||Standard equipped the carbon steel as the tank material, and the carbon steel can be replaced by stainless steel or aluminum alloy or colored steel.|
