Fuel Tank Truck 8X4 40 Cbm Stainless Steel Full Traile

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

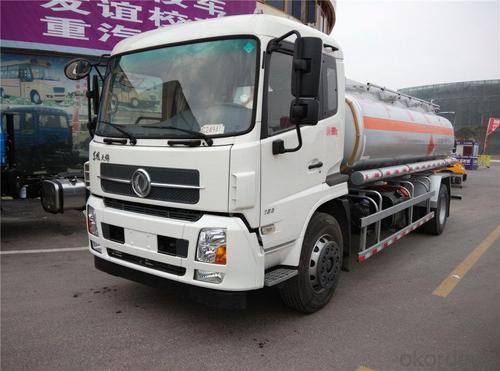

Fuel Tank Truck 8X4 40 Cbm Stainless Steel Full Traile

Product Details

Basic Info.

Model NO.:CA5310GYYT4



Transmission Type:Manual

Power:Diesel



Load Capacity:31-40t

Emission Standard:Euro 2



Tank Volume:>30000L

Drive Wheel:8×4



Seats:≤5

Horsepower:251-350hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ISO



Tire Design:Radial

Condition:New



Truck Type:Tanker Truck

Type:Fuel Tank Truck



Driving:8X4

Brand:Faw



Volume:40cbm

Colour:Red, White, Blue



Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW



Packing:Nude Packing

Standard:ISO



Origin:China

HS Code:8703109000



Production Capacity:50PCS/Month

Product Description


Product: FAW rear double axles Fuel tank truck, refuel truck.
Chassis: CA1310P7K2L7T4EA80
Gross weight: 55000 (kg)
Rated payload: 35000 (kg)
Kerb weight: 18005 (kg)
Overall dimension: 11800X2480X3800 (mm)
Tank dimension: 9500X2300X1500 (mm)
Approach/ Departure angle: 14/10 (degree)
Front/ Rear suspension: 1375/2550 (mm)
Max speed: 85 (km/h)
Engine: CA6DE3-28E3 WP10.336

Displacement: 6618 9726 (ml)
Power: 280HP/ 336HP
Manufacturer: FAW/WEICHAI.
Emission standard: GB3847-2005, GB17691-2005 Euro 3
Axle Nos: 3
Wheelbase: 1800+5725+1350 (mm)
Front tread: 1914 (mm)

Rear tread: 1847 (mm)
Tyre no.: 12.
Tyre specification: 12.00R20, 12.00-20, 11.00R20, 11.00-20
Fuel type: Diesel
Leaf spring nos: 4/10
Axle load: 7500/26000

Vehicle modelCA5403GHY Oil tank truckBatch No.197
ManufacturerFAWBrand nameFAW
Overall dimension(mm)11980×2480×3800Total weight (Kg)55000
Body internal dimension(mm)××Curb weight(Kg)18000
Approach/departure angle-/12Max speed(km/h)
Front/rear hang(mm)-/2130Vehicle identification codeLFA
Chassis model
Engine modelEngine manufacturerEmissionPower

 FAW/ WEICHAI Euro2 280hp,336hp
Fuel typeDieselTyre  number12
Axle number4Tyre  specification11.00-20,11.00R20,
12.00-20,12.00R20
Wheelbase1800+5730+1310Front wheel distance-
Axle load9000-/26000 ( parallel )Rear wheel distance1840/1840/1840
Leaf spring number-/8/8/8

Fuel Tank Truck 8X4 40 Cbm Stainless Steel Full Traile

Fuel Tank Truck 8X4 40 Cbm Stainless Steel Full Traile


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Why does the transmission gear and reverse gear use straight gears, while other gears use bevel gears? In addition, why do heavy duty trucks use straight gears for some transmissions?
In addition, heavy truck may be too large torque, the use of helical teeth, the axial force is too large, so that the axial positioning of the gear is difficult to implement, so the use of straight teeth.
Q:How many kinds of Chinese military trucks are there?
Although the military heavy off-road vehicle is a vehicle, but occupies an extremely important position in the world in the weapon equipments, plays a very important role: on the one hand, it is widely used in traction heavy artillery, artillery is an important equipment. On the other hand it is a missile and radar weapons and combat equipment main transportation. In addition, many countries have developed a large number of wheeled armored vehicles using the chassis of military heavy-duty off-road vehicles. Nowadays, military heavy duty off-road vehicles have become an important member of weapon families in various countries.
Q:What's the difference between a truck engine and a car engine?
A truck is a diesel engine, a car is a gasoline engine, and now a car can be used as a diesel engine
Q:What brand is Weichai engine truck
Benz heavy truck in general, Hongyan King Kong, beiben these are filled with WeichaiMuch Shaanqi FOTON AUMAN Valin FAW Qingdao Hongyan Jianghuai ghalefar Nanjun beiben Dongfeng Dongfeng Special Business Hangzhou Steam cavalry Dayun Yuejin Huizhong
Q:Does C1 need a qualification for a pickup truck?
To handle the qualification certificate for the management of road freight transportation, the provisions stipulated in the regulations on the administration of road transport employees shall be as follows:The driver of a commercial road freight transport shall meet the following conditions:Obtaining the corresponding motor vehicle driving license;(two) no more than 60 years of age;(three) master the relevant laws and regulations on road freight transportation, motor vehicle maintenance and cargo loading and storage;(four) after passing the examination, the corresponding qualification certificate shall be obtained.
Q:Where do I need to hit butter from the truck?
The main direction is the ball head, vertical pin, steel plate cover, transmission shaft, cross shaft
Q:What's the platoon wagon?
The truck (Truck) the formal name for the truck (van GOODS, VEHICLE), is a form of car to carry goods and goods, including dump truck, tow truck, road and no road area of off-road trucks and various vehicles designed for the manufacture of special needs (such as machine field, fire truck and car ferry the ambulance, tanker, container truck etc.). English Chinese Dictionary of trucks and trucks.
Q:How much is the annual inspection of the small truck?
If the vehicle belongs to the nature of the operation, it also needs to participate in the comprehensive inspection of the traffic department. It is also charged according to the approval of the local price department.
Q:What's the difference between a medium-sized truck and a medium-sized van?
The advantage of van comparing to ordinary freight car is:1, the local cargo van is a closed structure, and the cab is separated into two independent closed space, and the conventional truck parts exposed its cargo, cargo protection compared to van better transportation, the goods from the rain exposed to the weather in the long-distance transportation.2. Vans can also be used to transport other dangerous and non polluting chemicals, which are more widely used and safer than ordinary trucks.3 compared with traditional ordinary vehicles, from the strengthening of the loading of the goods bundled goods, goods in transit steps to prevent falling loss losses and security risks caused by the better, but also improve the work efficiency.4. Since van is a closed structure, it can be refitted into a heat box to transport other special articles which need to be kept or stored in cold storage.
Q:How do you know the horsepower of a large truck?
184kw is the power of the supercharged engine, which is the rated power under the normal operation of the supercharger. For supercharged engines, if the supercharger does not work, it will worsen and the engine will not work properly.
