Fuel Tank Truck 6X4 Trailer (CQ1254HTG434)

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

 Fuel Tank Truck  6X4 Trailer (CQ1254HTG434)

Product Details

Basic Info.

Model NO.:CQ1254HTG434



Transmission Type:Manual

Power:Diesel



Load Capacity:41-50t

Emission Standard:Euro 3



Tank Volume:<5000L

Drive Wheel:6×4



Seats:≤5

Horsepower:351-450hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Condition:New



Truck Type:Tanker Truck

Chassis:Cq1254htg434



Gross Vehicle Weight(Kg):25, 000

Overall Dimension(Mm):9, 640X2, 500X3, 201



Oil Tank(L):400L

Rated Weight(Kg):13730



Kerb Weight(Kg):11140

Color:Optional



Export Markets:Global

Additional Info.

Trademark:GENLYON



Packing:Nude Packing

Standard:SGS



Origin:China

HS Code:8716311000



Production Capacity:50000 Units/Year

Product Description



Truck Type: TANKER TRUCK
Driving Type: 6X4
Vehicle Brand: SAIC-Iveco HONGYAN
Rated Loading Capacity: 41-50T

Chassis: CQ1254HTG434
Engine model: C9 380, 380 HP Euro 3
Max. Output: 380 HP
Drive Axle: Double Reduction, Hongyan punching welding drive axle

Tires: 12.00R20 (with one spare tire)
Wheelbase: 4325+1350mm
Cab: Genlyon cab, Flat-roof strengthened, Left-Hand drive

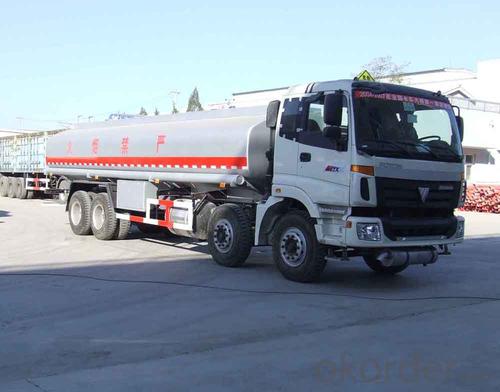

                                                                                        PIC IS ONLY FOR REFERENCE
NO.SPECIFICATIONPARAMETERNOTE
1Chassis                CQ1254HTG434

2ApplicationTanker truck

3Drive                  6*4


4Rated Weight13,730


5Kerb Weight(kg)             11,140


6Gross Vehicle Weight(kg)    25,000


7Type                   Genlyon cab,Flat-roof strengthed, Left-Hand drive
8EquipmentAir-conditioner, One Sleeper,Large carbin
9Overall Dimension(mm)     9,640x2,500x3,201

10Wheelbase(mm)             4325+1350

11Model                  C9 380


12Engine Output  (kw(HP))      (280)380HP

13Displacement(L)8.709


14Emission STDEURO3


15Drive Axle    Double Reduction, Hongyan punching welding drive axle
16Frame865/280 8+5

17Tyre                       12.00R20


18Oil Tank(L)400L


19Tank Volume (m3) 21


25m3 full trailer tanker specs
1Tank Volume (m3) 25


3Axle13 Ton x3, FUWA axle
4Tire12.00R20


5Leaf spring10 pieces


6tool box 1.2M*1


Fuel Tank Truck  6X4 Trailer (CQ1254HTG434)

Fuel Tank Truck  6X4 Trailer (CQ1254HTG434)


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What kind of aptitude does van manufacture?
A qualified professional Refitting Factory refit, after modification, the technical indicators will be issued by a qualified state approved vehicles that, by virtue of that to the test in the vehicle, after pass inspection, immediately apply for vehicle registration formalities.In addition, there is another new legal obligation that must be improved and fulfilled.
Q:What's the procedure for a minivan?
Nothing terrible, as long as the formalities are complete, where are not afraid. Each year more than two operations for maintenance, also do not pay taxes, they spend a thousand. The sale is money, corvee taxes! Ha ha ha。
Q:What is the big truck lock bridge?
Two cars generally only after the bridge bridge with power, only bearing action, only in special situations before locking bridge differential lock or wheel differential lock. Normal driving, if locked differential lock will cause damage to the differential, turning the bridge or even overturned.
Q:How many kinds of Chinese military trucks are there?
Although the military heavy off-road vehicle is a vehicle, but occupies an extremely important position in the world in the weapon equipments, plays a very important role: on the one hand, it is widely used in traction heavy artillery, artillery is an important equipment. On the other hand it is a missile and radar weapons and combat equipment main transportation. In addition, many countries have developed a large number of wheeled armored vehicles using the chassis of military heavy-duty off-road vehicles. Nowadays, military heavy duty off-road vehicles have become an important member of weapon families in various countries.
Q:What brand of van is good?
If sufficient funds can choose (devaluation), Chongqing Qingling called Isuzu (Isuzu engine), very good, currently on the market recognized domestic cattle X car, the price is expensive, more than 110 thousand meters, 4.2 single row, with no sleeper, or you can choose a car 3.2 m, you take food by taking discharge, good choice, 100P and 600P can be selected, fuel-efficient, low noise, the main engine is good, not bad, a lot of advantages.
Q:Want to buy a container truck?
Note 2 things: vehicle maintenance must be located at your point, this must find their own good, and with the garage to deal with good, to ensure that drivers without holes can be drilled. Two to set the vehicle fuel consumption, given the workload, the excess part of the driver for the reward and punishment measures. The driver causes the violation to be handled or deducted from his salary. There are no other questions about the 3.
Q:Why does a truck make a big noise when it brakes?
Large trucks and vans are used for air brake brake assembly, brake braking element assembly is used the brake valve and brake relay valve, when the truck brake pedal when the pump chamber for rapid pressurization, brake pump as a support for stroke, promote the brake holding the hub, the frictional force generated enormous, in order to achieve the purpose of braking.
Q:How can there be a lot of stalls in the big trucks? How do they hang up?
Resist hanging high-grade, speed to a certain speed ratio can be, generally is the blue bar inside 150 thousand turn. General road started without throttle, obtained is used only in the slope, hang up 1 stalls grabbed the handbrake, detonation speed to more than 1500, easily feel vehicle work in the clutch slowly release the clutch loose handbrake, the throttle must keep up, otherwise easy to hold the car with fire.
Q:What tools should be prepared for a large lorry?
Small fire extinguisher. A light fire extinguisher can extinguish the combustion in case of an automobile accident.6) original car manual. When the car has problems, you can immediately find out the reason from the manual.
Q:What are the brands of truck gearboxes?
Truck gearboxes generally have the following brands and models.
