Fuel Oil Tank Truck 8X4 Tanker Truck 20cbm

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

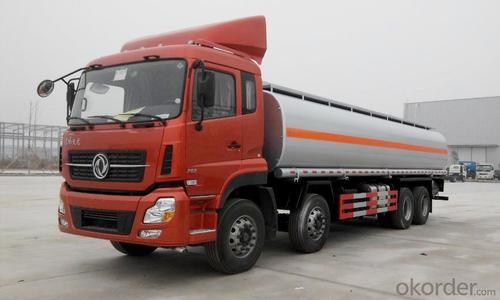

Fuel Oil Tank Truck  8X4 Tanker Truck 20cbm

Product Details

Basic Info.

Model NO.:CLW



Transmission Type:Manual

Power:Diesel



Load Capacity:21-30t

Emission Standard:Euro 3



Tank Volume:15001-30000L

Drive Wheel:8×4



Seats:≤5

Horsepower:251-350hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT, CE/EPA/Amse...



Tire Design:Tubeless

Condition:New



Drive Wheels:8*4

Overall Dimenssion:10200*2500*3430(Mm)



Type Name:Clw

Engine Brand:Sino Wd615



No. of Axel:4

Detail:22 Cbm Good Quality Futon Auman Fuel T



Other Brand:Dongfeng HOWO Sino Faw Foton JAC Forland Shamsn

Name of The Truck:22 Cbm Good Quality Futon Auman Fuel Oil T



Volume:10cbm 12cbm 15cbm 25cbm 23cbm 34cbm 35cbm

Pakaging Type:Naked, RO-RO, Bulk, Container, Waxing



Export Markets:Global

Additional Info.

Trademark:CLW Chengli 2015 Fuel Truck



Packing:Naked, RO-RO, Bulk, Container, Waxing

Standard:CE/EPA/ISO/CCC/ECE/GCC/DOT



Origin:Suizhou, Hubei Province

Production Capacity:100000

Product Description



Product detail:
Volume: 22 cbm
Storage: Oil
Drive Wheel: 6*4
Horsepower: 290HP

DescriptionSINOTRUK 6X4 HOWO OIL TANK TRUCK
Drive Model6X4
ChassisZZ1257
Vehicle Main DimensionsDimensions(L x W x H)mm10200*2500*3430
Wheel base (mm)4075+1400
Overhang (front/rear) (mm)1430/2820
Wheel track (front/rear) (mm)4275+1400
Approach/Departure angle(°)17/11
Weight in KGSCurb Weight14000
GVW.25000
Max. driving speed(km/h)80
EngineModelWD615-93
Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)290HP
Emission standardEuro III
Gearbox10 forwards & 1 reverse
ClutchReinforced diaphragm clutch
Steering GearPower steering, hydraulic steering with power assistance
Fuel tank (L)350
Tire 11.00R20
Brakesdual circuit compressed air brake
Van
MaterialQ235B Carbon Steel
Tipper Box Dimension7350*2500*1700mm
Thickness6mm
Volume22cbm
Optional equipments1. Options after the tail with the ladder.
2.  Installation running recorder with satellite positioning functions
3. oil-gas recycling system

Fuel Oil Tank Truck  8X4 Tanker Truck 20cbm

Fuel Oil Tank Truck  8X4 Tanker Truck 20cbm


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Difference between self operated freight car operation and non operation
Car insurance is also a lot more expensive. Non operating vehicles, insurance is cheap, procedures are also convenient, and family cars, as long as the hang of cards can, but pull goods, the traffic police should be punished. Moreover, the rated load quality of the truck is over 2 tons, so it must be operated.
Q:6 meters 8 truck fuel consumption is how much?
LZ, 6.8m trucks generally 100 kilometers fuel consumption in 25-30L or so, I hope to be helpful to you
Q:What is the difference between commercial vehicles and passenger cars?
Commercial vehicles: all freight cars, special vehicles, military vehicles, construction vehicles,More than 9 buses and tractors, agricultural vehicles, mining vehicles and so on.Passenger: pull the car.Commercial vehicles: for profit purposes, generally refers to trucks, large and medium-sized buses.
Q:What is the advantage of truck tyres?
Disadvantages are, but because the tire increases, inevitably or lead to increased rolling resistance, fuel consumption increases, power output will become weak.
Q:Why are most of China's urban pickups banned?
In September 2014 1 date, the pilot within 6 years of non operating cars and other small, mini passenger cars (except vans, 7 seat and seat more than 7 vehicles) exemption system, 6 years -15 years a year of a seizure, 15 years after half a seizure; pickup is ordinary light truck, naturally can not enjoy the benefits of the new deal still, 1 years -10 years of annual inspection, 10 years after the first half of a check.
Q:What documents do you need for a pickup truck?
Small trucks need certificates as follows:1, truck driver qualification certificate (for transportation)2, operation of the vehicle operating permit (for transportation)3, vehicle compulsory insurance (insurance company or some vehicles affiliated company will charge)4, the vehicle license (after buying a car home, there are traffic police vehicles)
Q:What is meant by "truck rotation" on the truck's exercise card?
Battalion turn does not mean that the so-called "battalion turn non", as its name suggests, is the operation of the vehicle into non operating vehicles. What we usually refer to as "transferring non - cars" mainly refers to the elimination of taxis or the elimination of freight cars into local licences.
Q:What's the freight rate of 9.6 meters?
Long-distance LTL cargo: calculated by kilograms or tonnes. According to the actual weight and the number of kilometers, about 0.2 to 0.5 yuan per ton / km. Per cargo to the specific operation of the local freight market to count. Light is calculated according to the volume of about 0.5 yuan per cubic metre to 1 yuan per ton / km.
Q:How can farm cars and trucks be distinguished?
Agricultural vehicles generally include the following characteristics:Diesel engine, reliable beam. Four wheel drive with differential lock, with off-road tire tread or tire pressure and wide section, single tire, tread the shaft before and after the same, higher ground clearance, large angle, close to the longitudinal angle and the angle of departure, shorter wheelbase, wider track. Therefore, the utility model has better adaptability, flexibility and lateral stability, and is suitable for field and pasture transportation boxes.The gearbox grade more, and high - grade double transfer case. The utility model can be operated at low speed, and has the advantages of large drawbar pulling force and high speed on the road, and has better adaptability.It has mechanical and hydraulic power output device, which provides power for supporting various kinds of professional transportation auxiliary devices. Equipped with compartments for different purposes.The cab has a good view and can be operated safely and conveniently. The utility model has the advantages of simple structure, low cost and removable canvas roof. The modified ordinary truck for agricultural vehicles was converted into an agricultural special vehicle, and the power take-off and power output device or hydraulic oil pump were mounted on the gearbox as needed. Some are also equipped with electrical equipment, to provide power and monitoring system for ancillary devices.
Q:What is a single row truck?
Trucks are commonly referred to as trucks, also known as trucks, vehicles that are mainly used for transporting goods, and sometimes automobiles that can pull other vehicles, belonging to the category of commercial vehicles. According to the weight of cars generally divided into heavy and light two. Most lorries are powered by diesel engines, but some light trucks use gasoline, petroleum gas, or natural gas.
