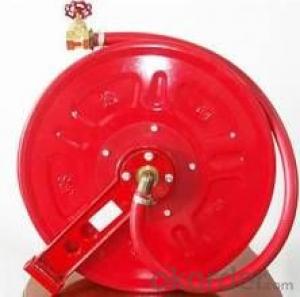

Fire Hose/hose reel drum, fire fighting hose reel

Ref Price:
Loading Port:
China main port
Payment Terms:
TT OR LC
Min Order Qty:
1000 m
Supply Capability:
3000000 m/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:







Specifications

1) 100% High quality Fire hose reel.
2) International Standard,Nice finish.
3) On time delivery.
4) Reasonable price.

Features:
1) Inner diameter: 19mm, 25mm
2) Length of hose: 20m, 25m, 30m
3) Hose color: black, red
4) Application: ideally used in supermarkets, hotels, tall buildings, and other public occasions.



fire hose reel and water hose reel is suitable for use in shopping centers, hotels, warehouse, school and public buildings. It enjoyd the advantages of convenient operation, flexible use and possiblity for untrained people to conduct fire extinguisher and self-rescue. It is ideal for putting out initial indoor fires.



Fire hose reels are located to provide a reasonably accessible and controlled supply of water to combat a potential fire risk. These appliances are designed to deliver, as a minimum, 0.33L of water per second. A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire. All fire hose reels come with a unique ball valve shut-off device, a solid brass hose reel nozzle and mounting bracket.



Specifications

Fire Hose Reel 1) hand swing type and swing arm 2) Inside diameter: 19mm 3) Length: 20, 25, 30m

Fire Hose Reel

These fire control hose reels are composed of a valve, input pipe, reel, hose and spray gun. It can spray fire retardant when the hose is extended. It is suitable for use in shopping centers, hotels, warehouses and high or low public buildings. It enjoys the advantages of convenient operation, flexible use and possibility for untrained people to conduct fire extinguishing and self-rescue. It is ideal for putting out initial indoor fires.

Specifications: 1)  Rated working pressure: 1.2Mpa 2) Effective range: ≥ 10m 3) Flow rate L/min: ≥ 40

4) Inside diameter: 19mm 5) Length: 20, 25, 30m

Fire Hose/hose reel drum, fire fighting hose reel

FAQ

1.Do you have QC teams?
 Yeah, sure, our QC team is very important, they will keep the quality control for our products.
2. What is your packaging of robot fire hose?

It's according to client's  requests.we can also accept OEM.





Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Consult fire hoses, reels, and light fire hose problems
Portable hose for use in tap water supply pipeline is composed of the special interface, fire hose and lance is a small and simple sprinkler equipment, the relevant requirements of public safety standard "GA" portable hose180.
Q:What is the role of fire hose?
Have many functions! Sometimes can be used to ask for help, usually can also be used to bask in water!
Q:What's the diameter of the hydrant?
Hydrants, officially called fire hydrants, are a type of fixed fire fighting facilities, which control fuel, insulate fire and eliminate fire. Indoor fire hydrant and outdoor hydrant. The fire fighting system includes outdoor fire hydrant system, indoor fire hydrant system, fire extinguisher system, and some automatic sprinkler system, water gun system, gas fire extinguishing system, fire detection system, water mist system and so on. Fire hydrant mainly for fire engines from the municipal water supply network or outdoor fire water network to implement fire fighting, can also be directly connected to the hose, water gun fire extinguishing. Therefore, indoor and outdoor fire hydrant system is also one of the important fire fighting facilities.
Q:How can the fire hose distinguish the model?
Specification is a series of indicators reflect the nature of the goods, performance, quality, usually by a group of letters and numbers in a certain number of components, specifications to accurate and detailed specification, so as to ensure the accurate and clear classification statistics, in favor of consumers to choose suitable products, basically have the fire hose, braid the lining of the outer coating layer is composed of three parts, and each part can have a variety of materials, such as braided main materials are synthetic fiber, cotton and linen etc., lining the main material of rubber and latex, plastic and polyurethane, thus increasing the designation of specifications in the new standard.
Q:How long is the service life of fire hose, and what standard does it carry out?
To determine whether meet the requirements of fire hose, from the appearance of surface damage / diameter and length and inner material / supporting fire hydrant is aging and other aspects of the specific judgment, can control the national product standard GB 6246-2011 "fire hose";
Q:Method for using fire hydrant water gun and water hose
1 pull out the fire hydrant door and take out the water hose and water gun. 2 check hose and fittings are good, if damaged, no use. 3, to the direction of fire laying hoses, pay attention to avoid twisting.
Q:Consult fire hoses, reels or light fire hose problems
Fire hose is used to transport high pressure water or foam and other flame retardant liquid hose. The traditional fire hose is lined with rubber and the outer bread is covered with linen. The advanced fire hose is made of polyurethane and other polymeric materials. Both ends of the fire hose have metal joints that can be joined by another hose to extend the distance or attach the nozzle to increase the injection pressure of the liquid.
Q:Single bolt combined fire box with two fire extinguishers, a 19 mm gun, 25 meters water pumps in the one.
Type a bolt with fire extinguisher box combination fire box, fire hydrant box model: SG, 24D, 65-P, specification size: 1600 x, 700 x 240
Q:Working principle of fire hydrant
You said the fire hydrant in the outdoor, this thing is actually not what this principle, and the outdoor hydrant is connected with the municipal tap water pipe network, the bolt mouth connected to the hose, use special wrench to unscrew the fire hydrant water, as the winter freeze, can only say that the fire hydrant has a problem, is not the general outdoor fire hydrant frozen, because the bottom of the two pin port has an automatic discharge port, when the fire hydrant located inside the mouth shut, bolt water outflow in automatic drainage below the mouth. Ha ha, I believe you understand. I wish you a happy job!
Q:What is the function of indoor fire hydrants?
Fire hydrant, fire water system is an important part, it is installed in the indoor fire box, average nominal diameter (mm): DN50, DN65 two, nominal working pressure is 1.6MPa, the strength test pressure 2.4MPa, medium: clear water foam mixture.
