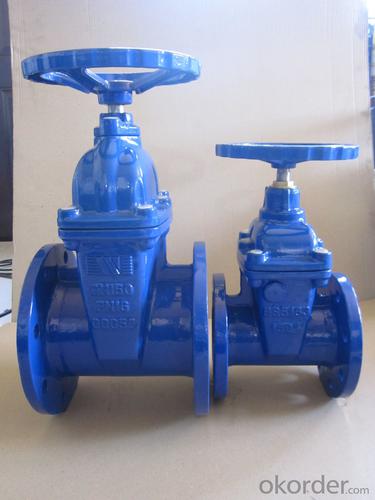

F4 Elastic seat sealed gate valve

Ref Price:
Loading Port:
Tianjin
Payment Terms:
TT OR LC
Min Order Qty:
1 unit
Supply Capability:
10000 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

1.Technical Date:

Size: DN40-DN1200

Nominal Pressure: PN10/PN16

Operation Temperature: -10°C~150°C

Suitable Medium: Water,Sewage,Seawater,Gas,Food,Oils,etc.

2. Standard

Design Standard: DIN3352

Structural Length: DIN F4/F5

Type of connection: Flange Type

3. Feature:

1,  the rubber valve adopts the whole package, its good with performance  and precise geometry size to ensure reliable sealing, long service life.

2, simple and compact structure, convenient operation, easy installation and easy maintenance;

2, at the bottom of the tank, large flow area, sizing smooth transition, no dirt accumulation phenomenon, small flow resistance;

3, resilient seal, zero leakage and long service life;

4,  the valve inside and outside spraying epoxy resin coating, coating  rubber damper as a whole, to prevent the corrosion and rust polluting  the medium, not only for drinking, and can be used in the sewage system;

5,  stem with three "O" type circle in sealing, low friction resistance,  small operation torque, easy, for opening and closing without stuffing  box leakage phenomenon, and under the condition of pressure and constant  water replace o-rings.

6, soft-sealing gate valve can be used for adjusting.

7,  have automatic adjustment function, through the guide valve plate and  valve body, automatic calibration. Screw nut is embedded on the valve  plate to ensure the center line of the valve stem and valve body  centerline of automatically.

8, ensure that opening and closing more than 50000 times without damage, the valve plate closed tightly.

9, paint on the surface of the valve has the good, using polyester paint, paint color to blue.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the meaning of socket welding gate valve A105, D&S:STLT, STEM:13Cr, CL800, SW, AP1602, BB-BG-OS&Y?
Body material: A105Sealing surface material: STLStem material: 13CrPressure rating: CL800Connection: SWImplementation criteria: AP1602BB-BG-OS&Y: plain rod support, bolt connection, flange valve cap.
Q:What is the difference between an elastic gate valve and a rigid gate?
Brief introduction: the valve gate valve is a gate opening and closing parts, RAM direction of motion perpendicular to the direction of the fluid, valve can only be fully open and fully closed, can not be adjusted and the throttle. Gate has two sealing surface, the most commonly used mode gate valve of the two sealing surface to form a wedge, wedge angle with valve parameters vary, usually 50, medium temperature is not high when 2 degrees 52'.Wedge gate valve can be made into a whole, called the rigid gate; can also be made to produce micro deformation of ram, in order to improve its process of deviation, make up the sealing surface angle in the process, the gate is called the flexible gate.
Q:What are the main types of gate valves?
According to the thread position of the valve stem, can be divided into two kinds of open rod gate valve and dark rod gate valve.
Q:What is plug welding gate valve?
Socket welding valve valve cover design in three forms. The first is forging steel bolt type valve cover, according to this design form design of the valve, the valve body and the valve cover bolt nut connection, spiral wound gasket 316 clamp flexible graphite manufacturing: seal. Customers have special requirements can be used when the metal ring connection. Second design form is the welded bonnet, according to this design form of the valve, the valve body and the valve cover with a threaded connection, welded seal. Customers have special requirements can be used when the third is connected through welding. Self sealing valve cover, according to this design form design of the valve, the valve body and valve cover with a threaded connection, pressure from the dense ring seal.The editing characteristics of 1 valve design and manufacture in accordance with API602 and ASME B16.34. tested according to API 598, marked by MSS-SP-25.2. full diameter or diameter shrinkage 3 rod bracket type 4 self centering sleeve type 5 pressure plate bolt connection, spiral wound gasket seal type valve cover nut connection, welded seal type valve cover and screw connect the internal pressure self tightening type valve cover 6 integral sealing seat 7 socket end with ASME B16.118. threaded end (NPT) with ANSI/ASME B1.20.19. valve can be transformed into the throttle type, needle type, ball type and type check
Q:How about the model of stainless steel gate valve?
Stainless steel gate valve is divided into 304 stainless steel gate valve, 316 stainless steel gate valve, 321 stainless steel gate valve. The expression is: Z41H-16P.
Q:What is the difference between gate valve Z41T and Z45T?
Z41T is a dark pole gate valve, and Z45T is a plain rod gate valve,
Q:What does gate valve DN80-PN16-QT450 mean?
DN80 means that the nominal diameter of the gate valve is 80mm, and PN16 is the nominal pressure of the gate valve is 16Mpa. Q quick form T cast iron, 450 flanged connection single gate valve.
Q:What does gate z41t-10 150 mean?
According to JB/T308-2004 "valve type programming method"Z gate valve4 flange connection1 Ming wedge single gateT sealing cover material is copper alloy10 nominal pressure PN10PN16 below no marked valve body code, body material is gray cast iron150 nominal size DN150
Q:How to distinguish between gate valve and cut-off valve?
Two can be closed, in the flow of linear requirements are not high, you can adjust the flow. Just because of its structural characteristics of the valve to make its flow resistance, so there is a demand for throttling with a little more than the gate valve. In addition, the cut-off valve, whether it is a formal or reverse installed, in the opening and closing process, there is always a very difficult, and therefore can not do a great deal, or it is not easy to open and close. In addition, the cut-off valve has a one-way sealing effect of good features, so in the prevention of reverse flow of the working fluid, it also has a place to play.Hope to be of some help to you!
Q:What is the difference between the copper gate valve and the ordinary material gate valve?!
The copper gate valve is made of copper alloy, and the common materials are made of stainless steel, cast steel, cast iron, and so on. Now there are new types of ceramic gate valves. Different properties of the gate valve performance, processing technology, service life, applicable occasions are a certain difference. Copper gate valves should be used for fire end water outlet installations as well as other occasions with special requirements.
