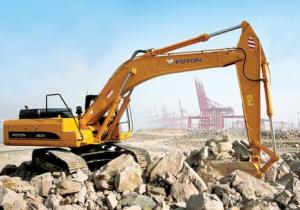

Earth Moving Excavator high quality FR220

Ref Price:
Loading Port:
China main port
Payment Terms:
TT OR LC
Min Order Qty:
1 unit
Supply Capability:
100 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

1. Adequate technology for earthmoving operation which is formed by absorbing advanced European technology. The product orientation is mainly the working condition of rock operation, being highly efficient and economical;
2. Isuzu engine with advanced performance, high reliability and strong motive power;
3. Rexroth positive flow system is employed for the first time, idling automatically with low power loss and system heat, which enhance the controllability and accuracy control performance of the excavator;
4. Enhanced working device design, adopting cast-weld structure of low welding stress, excellent effect of absorbing vibration and high strength.

Main Parameters

Operation Weight (Standard Configuration) (KN) 21800

Standard Bucket Capacity 0.92

Transport Dimensionsmm 9380*2980*3030

Bucket Digging Force (KN) 138

Bucket Rob Digging Force (KN) 126

Maximum Traction (KN) 174

Device

High-low Speed (Km/h) 5.3/3.5

Climbing Performance(°) 30

Total Length of the Crawler 4450

Tail Turning Radius (mm) 2770

Width of the Crawler 600

Ground Pressure (Kpa) 46

Turning Mechanism

Turning Speed (rpm) 12.3

Engine

Model Cummins 6BTAA5.9-C150

Form Six Cylinders, Straight, Four Strokes, Direct Injection,Pressurization, Air Inter Cooling

Rated Power/Rotate Speed (KW/rpm) 112/1950

Rated Torque/Rotate Speed (N.m/rpm) 614/1500

Cylinder Diameter*Stroke (mm) 102*120

Output Value (L) 5.88

Fuel Consumption (g/KW.h) 221

Hydraulic System

Fuel Tank Capacity (L) 380

Main Pump Pressure (Mpa) 31.4/34.3

Main Pump Flow 230*2

Operating Scope

Maximum Digging Height (mm) 10220

Maximum Dumping Height (mm) 7260

Maximum Digging Depth (mm) 6620

Maximum Digging Radius (mm) 9900



Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:The hourly fuel consumption and digging capacity of excavators 10
Hitachi 200-3 as an example:Fuel consumption about 12~15 liters per hour or so, mainly depends on the size of the excavator work intensity.The amount of excavation is 10 hours a day, about 1000 square meters (general dumping does not include loading and other special operations).If you use some larger excavators, such as 220; 300; 350; 400; oil consumption and excavation volume have different degrees of improvement.
Q:What's the name of the lock door?
Are you talking about a lock with two hooks that can adjust the length?. That's the lock on the steering wheel of the car!
Q:What should we pay attention to when purchasing excavators?
Excavators should pay attention to the chassis, hydraulic systems, walking systems, walking systems of steel (especially rail training and bucket teeth) is normal.Open the engine cover and check the exhaust pipe for signs of smoke. You can pull out the dipstick and check whether there is smoke. Too many usually illustrate the need to replace the piston rings of smoke, and may soon have to overhaul the engine also includes basic inspection and check the radiator and engine oil liquid, the corrosion degree of the engine and check the battery, check around there is no obvious leakage.Excavator, also called excavating machinery, is a kind of earthmoving machine that uses bucket to excavate material that is higher than or lower than the machine surface and is loaded into transportation vehicle or unloaded to the stacker. Excavators are mainly made of soil, coal, sediment, and soil and rocks that have been pre - loosened. From the development of engineering machinery in recent years, the development of excavator is relatively fast, excavator has become one of the most important construction machinery in engineering construction. The three most important parameters of excavator are operation weight (quality), engine power and bucket bucket capacity.
Q:What brands do foreign excavators have?
Japan: Hitachi, Kobelco, Sumitomo, Komatsu, Kato, Ishikawa Shima, Kubota, TakeuchiKorea, Doosan and modernUnited States: Carter, KeithEurope: JCB, Bohai, Terex, Volvo (Volvo is a European brand, but in fact it is the technology of Samsung)
Q:What are the main parts of the excavator structure?
The common excavator structure includes power device, working device, slewing mechanism, control mechanism, transmission mechanism, walking mechanism and auxiliary facilities, etc..In appearance, the excavator consists of three parts: the working device, the upper rotating platform and the walking mechanism. According to its structure and use, can be classified as: track, tire, walking, full hydraulic, semi hydraulic, full rotation, non full rotation, universal, special type, articulated, telescopic arm and other types.A work device is a device that performs the task of digging directly. The utility model is hinged by three parts, such as an arm, a bucket rod, a bucket, etc..
Q:When did excavators first come out?.
In the current social construction, excavators are becoming more and more integrated with our daily life. The excavator is the earliest human or animal power for digging deep river dredger, bucket capacity is generally not more than 0.2~O.3 cubic meters. The first excavator manual has been developed for more than 130 years of history, has experienced a gradual development process of automatic hydraulic excavator driven by steam rotary bucket excavator to the internal combustion engine and electric drive rotary excavator, application of mechatronics technology during the. 2012-4-15 22:37:57 upload download attachment (7.39, KB)American Otis 1833~1836, the design and manufacture of the first steam engine, composite structure, semi rotary, rail mounted single bucket excavator, productivity is 35 cubic meters per hour, but because of poor economy without application. The improved steam shovel was formally produced in 1870s and applied to strip stripping. In 1880, the first semi - rotary steam shovel with tractors as the chassis appeared.From the early twentieth Century to the late 40s, excavators entered the stage of diversification of power and walking equipment.In 1910, there was the first motor driven single bucket excavator;In 1912, there was a full rotary single bucket excavator driven by gasoline engines and kerosene engines;In 1916, a single bucket excavator powered by diesel generators was produced;In 1924, diesel direct drives began to be used on single bucket excavators; crawler walking devices were introduced in 1910. With the development of the automobile industry, the tire walking device is widely used in small excavator.In 30s, a walking device appeared.Due to the application of hydraulic technology, a suspension excavator equipped with hydraulic backhoe was installed in the tractor in 1940s.
Q:How do excavators distinguish between positive and negative?
Two modes of operationThe first kind is the Japanese second-hand import machine and senior veteran driver as the representative, the left hand handle of the front, back, left and right corresponding control is the excavator's right rotation, left rotation, bucket extension and bucket recovery. We used to be referred to as "front and back spin"".The second type is the domestic new machine and the new generation of young drivers as representatives, left hand handle of the front, back, left, right, respectively, corresponding to the control of the excavator's bucket stick, bucket recovery, left rotation and right rotation. We used to be referred to as "left and right spin"".There are people who have called these two modes, "mobile phone" and "mobile phone", but due to the lack of a unified nomenclature, caused the differences on the way, before and after rotation is called mobile phone, the mobile phone is called reverse rotation, but also to rotate around the mobile phone is called, before and after the rotation is called reverse mobile phone. So to avoid confusion, said only this, before and after the rotation and rotation, to note here is "mobile phone" is refers to the rotation, and rotation or rotation before and after the "anti mobile phone", two kinds of the different mode of operation is only the left hand excavator operating handle, right invariant handle mode.Two ways of shoveling soil
Q:Excavator slewing support which good?
Is located in Shenzhen City Pingshan Pingshan Street No. six and fourth community in Baoshan Industrial Zone 17. Is the production of slewing bearings professional manufacturers, set design, manufacture, research and development in one, production and testing equipment.
Q:What is the width of bucket excavator backhoe bucket capacity 0.01M fand ah?
The price is still very high, about 200000.It was Komatsu who showed off his technique.Let no link width somersault.The excavator I saw was about 400 wide
Q:Excavator voltageLow voltage alarm for several hours,
I suggest you use the multimeter to test the generator's voltage and see if there is any problem with the generator. If the above inspection does not have the unusual, must ask the specialized maintenance to help you to solve the problem.
