Product Description:

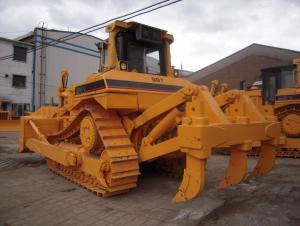

Product Name: Bulldozer SD7

1. Product Feature of Bulldozer SD7:

Bulldozer SD7 is a 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.

Its integrated modular design is easy for repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safe comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is an ideal machine used in civil projects, oil fields, power plants, mining projects etc. and other large earth moving program.

2. Specification of Bulldozer SD7

1)General Specifications

Blade

Straight and Tilting

Operation weight:(kg)

23800(without ripper)

Ground pressure:(kpa)

71.9

Track gauge(mm)

1980

Min. ground clearance:(㎜)

404

Gradient:

30°/25°

Dozing capacity:(m3)

8.4

Blade width:(㎜)

3500

Max. digging depth:(㎜)

498

Overall dimensions:(L×W×H)(mm)

5677×3500×3402

Overall dimensions:(L×W×H)(mm)

5677×3500×3402

2)Diesel Engine

Engine Name:

Cummins NTA855-C280S10

Rated revolution:(rpm)

2100

Flywheel power:(kw)

169

Max.torque:(N.m/rpm)

1097/1500

Rated fuel consumption:(g/kw.h)

≤235

3)Undercarriage System

Type:

The track is triangle shape,the sprocket is elevated elastic suspended.

Number of track rollers(each side)

7

Pitch (mm)

216

Width of shoe (mm)

560

4) Gear

1st

2nd

3rd

Forward (Km/h)

0-3.9

0-6.5

0-10.9

Backward (Km/h)

0-4.8

0-8.2

0-13.2

5) Rops with air conditioner cabin

The cab is hexagonal thin wall box-type structure. Glass is mounted at six sides with wide viewing area. Pulling and pushing glass is installed at back side. Air conditioner is top-mounted with functions of cooling and heating. The structure of ROPS is rigid. It can protect the driver efficiently when the bulldozer is in special condition.

3. Delivery and Package of Bulldozer SD7

This model Bulldozer SD7 are normally shipped by Bulk vessel or Roll-on Roll-off vessel, sometimes urgently sent by Flat rack.

 BULLDOZER SD6G and SD7 loading

4. Primary Competitive Advantages

1) Brand-name Parts

2) Country of Origin

3) Competitive Price

4) Good Product Performance

5) Prompt Delivery

6) Quality Approvals

7) Good Reputation

8) Expedite Communication

9) Good Packaging

10) Distributorships Offered

11) One Step Service

12) Good Quality Service

13) Small Orders Accepted

14) Oversea service branches
