Basic Car/Fleet GPS Tracker TS-20 with SOS Alarm, Voice Monitor, Engine Cut Off and Android APP

Ref Price:
Loading Port:
Hong Kong
Payment Terms:
TT OR LC
Min Order Qty:
1 set
Supply Capability:
10000 set/month
  • OKorder Service Pledge
  • Quality Product
  • Order Online Tracking
  • Timely Delivery
  • OKorder Financial Service
  • Credit Rating
  • Credit Services
  • Credit Purchasing

Add to My Favorites

Follow us:

Specifications:

Battery powered gps car tracker
OTA
Low power consumption
Time based/Distance report
Open CPU technology



Battery powered gps car tracker



 Key Features :



- SMS/GPRS Communication

- Wide Power range: 9-36V DC/1.5A - I/O Ports: Ignition, Immobilizer, Panic, Door Status detection

- Low Power consumption with Open CPU technology

- Internal memory store for GPRS null zone data 2000waypoints

- Time based/Distance based position report

- Mileage Report - Alarm alerts: GEO Fence, Speed over, Power tamper and Panic

- Voice Listen-in

- Backup Internal battery included - OTA



Basic Car/Fleet GPS Tracker TS-20 with SOS Alarm, Voice Monitor, Engine Cut Off and Android APP

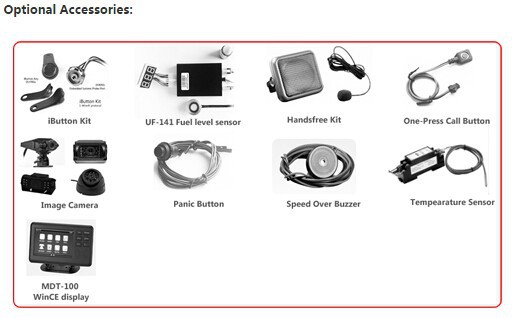

Add-ON Optional Accessories:



Relay



TS-20 is a GSM/GPS tracker for car tracking application.  It's with superior GPS receiver sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can continuously report current position to backend server.

TS-20 is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages.





Technical Specifications:



-  GSM / GPRS features:



.  FIBOCOM G510 (Quad-bands)



.  GPRS class 10



.  SMS (text, data)



.  Voice calling



-  GPS features:



.  Skylab GPS Receiver



.  -160dB Sensitivity



-  Hardware features:



.  OpenCPU Technology



.  2000Waypoints for GPRS Null zone data storage



.  External GSM/GPS Antenna



.  Internal backup battery with 350mAH



.  USB Port for configuration and firmware program

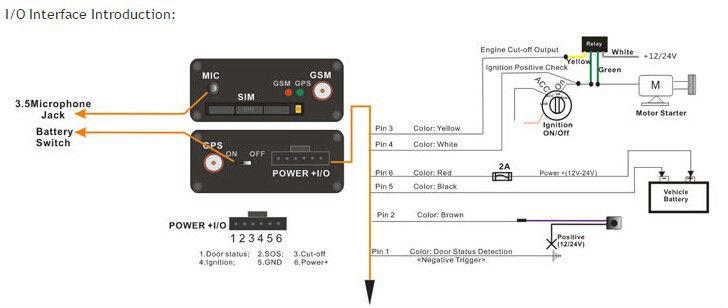

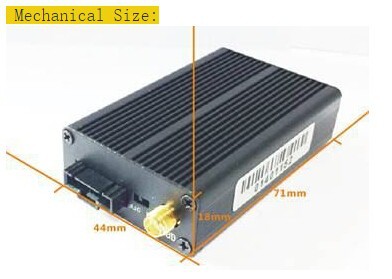

RT-20 SizeRT-20 Interface

How it worksService Platform

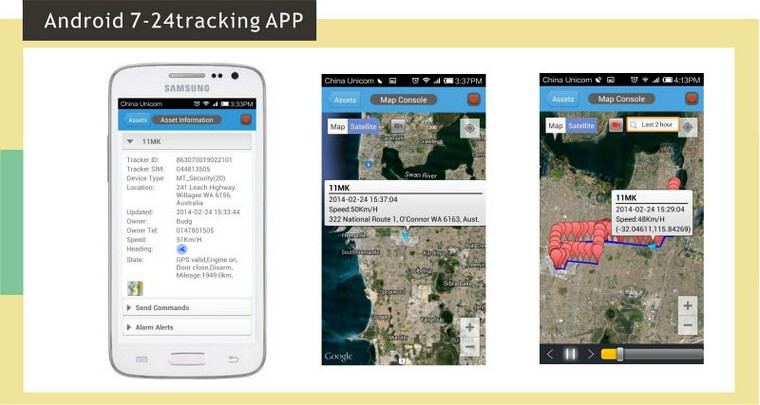

Android APPOptional Accessories


Q:What are the features of the GPS car locator
2 remote tracking and monitoring center in the monitoring software on the GPS terminal timing tracking settings can be set to a fixed time to upload location information and status information, once set up, GPS terminal will according to the monitoring center issued the instruction request timely upload needed information monitoring center;
Q:What is a GPS positioning system?
GPS system compositionGPS system has three major components, namely, the space constellation, ground monitoring and user equipment. Space constellation in GPS 24 satellites distributed evenly in 6 orbital planes, orbital plane angle relative to the equatorial plane is 55 degrees, the angle between the plane of the orbit is 60 degrees, each satellite orbital plane 90 degrees, either on the satellite orbit plane than in the west adjacent corresponding satellite orbital plane the lead on 30 degrees. The average altitude of the satellite orbit is 20200km, and the satellite running period is 11 hours and 58 minutes. Each satellite every day about 5 hours above the horizon, and at the same time the number of satellites above the horizon varies with time and location are different, can be 4~11; the ground monitoring part of GPS at present mainly by the distribution in 5 ground stations around the world, including the injection station inspection station, master station and information. The space part and ground monitoring part of the GPS is the basis of the navigation and positioning of the system which is widely used by the user, which is controlled by the United States. The user equipment of the GPS is mainly composed of the receiver hardware and processing software. The user receives the GPS satellite signal through the user equipment, obtains the user position, the speed and so on through the signal processing, finally realizes uses GPS to carry on the navigation and the localization goal.
Q:How to track vehicle location
Three, car positioning tracker also known as car positioning tracker, mainly car anti-theft GPS positioning products. The function of the vehicle positioning tracker includes short message positioning, timing positioning, network query, remote monitoring and remote locking.Four, the device can be in accordance with the user preset time to report the current location of the device information, speeding alarm: when the speed exceeds the preset speed, will send a warning voice prompts.
Q:How to shield the signal of GPS vehicle locator
GFalnrgqlpwkxZYou can take a look at the security shield Teng, after all, is a large company in technology and services more powerfulTRgbyxootxhfh
Q:Car positioning display offline is how
There are several reasons for the following reasons:1, GPS locator SIM card money;2, your car is in a signal blind area, equipment can not upload information;3, GPS locator communication module (GSM module) out of the question;4. The GPS antenna is broken;5, the device is dead;6, the sensitivity of the GPS module can not be fixed.
Q:The old man has Alzheimer's disease, what locator products recommended?
Third: the problem of the antenna, the antenna is difficult to make a difference.So the general public in the selection of locator, it is difficult to distinguish who is good or bad, refer to 3 points: reliable manufacturers, reputation is good, a penny.In addition, there is a very important point: the elderly will not forget to wear a locator is a good locator. There are children's watches, smart wristbands, etc., personal recommendation of the belt, as long as you have to wear pants belt, the elderly will never forget to wear.
Q:Is the car fitted with a burglar alarm or a GPS locator?
Security was scare thieves villain ~GPS is invincible when installed than people stole told you the terms didn't say will lose a ~ ~ GPS jammer is buried in my friend's car just farewell ~ or a good honest Ansuo
Q:Principle and application of GPS
Three, the application of GPS in car navigation and traffic managementThree dimensional navigation is the primary function of GPS, aircraft, ships, ground vehicles and pedestrians can use GPS navigation navigation. Vehicle navigation system is a new technology developed on the basis of global positioning system GPS. The vehicle navigation system is composed of GPS navigation, autonomous navigation, microprocessor, vehicle speed sensor, gyro sensor, CD-ROM driver, LCD display. GPS navigation system and electronic map, radio communication network, computer vehicle management information system can be achieved, such as vehicle tracking and traffic management and many other functions.GPS positioning system is not only used for navigation and positioning of missile, spacecraft, is widely used in automobile, ship, aircraft navigation, public security, banking, medical, fire protection, the establishment of monitoring alarm and rescue system with it, the establishment of a modern enterprise logistics management system with it, agriculture, forestry, environmental protection, resource investigation, physical exploration, telecom all cannot do without navigation, especially with the integration of micro satellite navigation receiver, a personal information terminal of various financial communication, computer and GPS in one of the satellite navigation technology applied to the public from professional application, become after communications and Internet IT third new growth points. GPS as the representative of the satellite navigation and positioning industry is attracting more and more attention.
Q:Car G P S locator day launch a signal
The way the automotive GPS locator after the receipt of goods traffic card into the card slot equipment, electricity, see blue light after representing the location, then you can use the account and password.
Q:Just burglary was not a very expensive mountain bike, intends to buy a car with GPS, please recommend a few easy to use micro GSP locator, a treasure on the more complex, a few requirements:As small as possible, the mountain car is not easy to hide.Life as long as possible, 35 days a charge that is not convenient to use.Don't seven hundred or eight hundred ha, cheap point.
Pro, after all, electronic products, GPS devices require GPS module, communication module, processing module and battery, so do not do too small.But now there are GPS children watch, there are more subtle GPS positioning shoes, a lot of online selling, you can Baidu: a treasure net to see.Just a few hundred, remember to software client, account and password.You can shop three,General GPS terminal (about 400 yuan) + a traffic card (opened a package of $5 a year) + software (see if it is free). Each fee is different, but generally 500 - 600 get.In fact, GPS equipment general strategies, mainly to see the software, convenient to use, you have to function, you can also see the two. Try software features, look at the map.Pro, my answer is helpful to you ah
