Product Description:





General Introduction

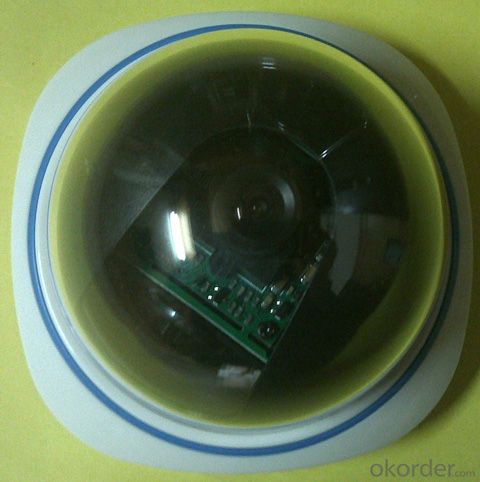

650TVL CCTV Security Dome Camera Indoor Series FLY-3026 is a closed circuit television CCTV camera used for surveillance. It adopts 3.6mm fixed focus lens to let you view objects within 10meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.



Specifications:

MODEL

FLY-3026

Image Sensor Type

CMOS4140+811

TV Format

PAL/NTSC Optional

Resolution

650 TV lines

Minimum Illumination

0 LUX(IR ON)

LEN

3.6mm

S/N Ratio

≥48dB

White Balance

Auto(2500°K~9500°K)

Electronic Shutter

Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL)

1/60~-1/120,000 Sec(NTSC)

Back light Compensation

AUTO

Video Output

1.0Vp-p composite 75ohm

Power Consumption

600mA

Power Supply

DC12V

Operation Temp

-10°C~+50°C



Applications:

You can get the security surveillance for your home, and this camera have been used in various places, such as warehouse, office, supermarket, doorkeeper etc.



cctv camera



Customized Options

We could offer OEM and ODM services for our clients.

Resolution: 420TVL/500TVL/600TVL/650TVL/700TVL/800TVL Optional

Lens: 3.6/6/8mm Optional



 Lens Optional

Packing & Delivery



Package :

1*pc Dome Camera FLY-3026



Delivery:

Shipping Service

Estimated Delivery Time

DHL

2-8 business days

FedEx

3-8 business days

TNT

2-10 business days

UPS

1-7 business days

EMS

6-14 business days

ePacket

7-12 business days

China Post Air Mail

7-15 business days

China Post SAL

14-30 business days

By Sea

30-40 business days

1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders.

2. "Business days" means Monday-Friday, excluding holidays.

3. DHL and UPS cannot ship to military or P.O. boxes address.

4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.



CCTV CAMERA

cctv camera line



Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Monitor the camera mentioned in the three stream, what is the meaning of ah, which three?
The three stream uses a high bit rate bit stream for local high definition storage, such as h.264 D1 encoding, all the way low bit rate stream for network transmission, such as D1 / CIF encoding, another way ultra low bit stream for 3G Network transmission, mobile phone viewing, such as QCIF, while taking into account the local storage and remote network transmission.
Q:Use home computer camera how to install home monitoring?
The first transmission distance monitoring camera installation, generally need to use a few meters to tens of meters ranging from the transmission distance, but in accordance with the provisions of the USB standard, USB device, the longest transmission distance is 5 meters, so USB are Can not use long distance, which is what we use the USB camera to do monitoring the first problem encountered, the camera transmission distance. In fact, USB transmission distance can be resolved, USB can be extended through USB? HUB transmission distance, each additional HUB, you can extend the 5 meters, a total increase of 5 HUB, which is extended 5 times, each 5 meters, so The longest extension of 25 meters. Why is the USB demanding on the distance so strict? This is because the USB signal frequency is very high, the line in the process of transmitting the signal attenuation of the signal is very large, when the signal attenuation can not maintain the normal transmission of the signal, WINDOWS will prompt "to find unrecognized USB device" So the general distance can not be more than 5 meters!
Q:How is the general surveillance camera connected to the computer?
(2) Remove the screws from the video capture card box, the video capture card fixed in the chassis, as shown in Figure 1.26.
Q:Dahua monitor a single image upside down, the rest of the camera are good, how the matter, had been good!
I also encountered a similar situation, contact Dahua customer service, there is no solution, this is pit! Later changed the AnRui pass the camera, feeling okay
Q:Monitor the hard disk video recorder how to pick up the computer
WAN: If your video recorder and the computer to see the image is not in a place, their network cable can not be inserted under the same router, then we must browse through the WAN. The basic operation is almost, but if you are the average family of the Internet, then to apply for domain names, do mapping on the router.
Q:Camera gun 4MM, 6MM refers to what?
Camera gun parameters in the 4MM, 6MM, etc. refers to the camera is configured lens focal length.
Q:Monitor the camera's focal length how to choose?
First, choose to monitor the camera lens also pay attention to the focal length of the lens, the focal length is actually the perspective of the problem, the focal length of different perspectives are also different.
Q:Hai Kangwei depending on the surveillance camera how to achieve continuous automatic capture, such as a second catch a?
If you want to install ten cameras then the traditional camera is necessary for each coaxial line must be inserted at the same time a video recorder can be used normally, but the network camera can add a switch, that has ten network switches into only need Through a network cable to pull another switch on the normal use, so do not have to spend a lot of trouble, save a lot of labor)
Q:Monitor the camera automatically zoom, electric zoom, manual zoom, zoom lens meaning and difference?
Electric zoom: Electric zoom usually refers to the camera through the console (such as hard disk recorders, matrix controller, cloud mirror controller) can make the camera zoom.
Q:Monitor knowledge! 1.2 m × 20 meters of the corridor with a large angle of the camera the best?
According to my experience, the first with 6mm lens, the second with 3.6 or 4mm lens is better.
