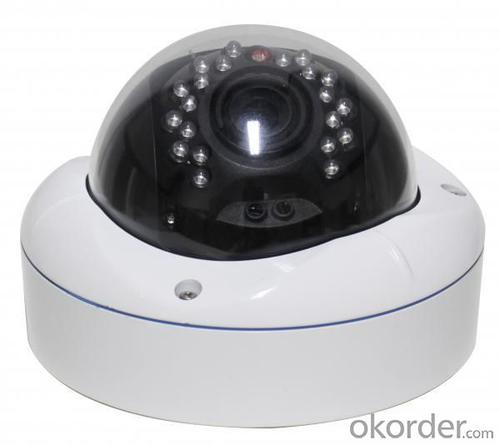

480TVL IR Array Waterproof Camera

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT or L/C
Min Order Qty:
100pcs pc
Supply Capability:
10,000pcs per month pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Packaging & Delivery

Packaging Detail:Neutral color box
Delivery Detail:7-10 days after getting payment money



Description of 480TVL IR Array Waterproof Camera



Model CMAX-642S-RA60CMAX-648S-RA60CMAX-654S-RA60CMAX-665S-RA60
Image sensor 1/3 SONY CCD
PixelPAL500(H)* 582(V)720(H)* 540(V)752(H)* 582(V)976(H) x 582(V)
NTSC510(H)* 492(V)768(H)*492(V)768(H)* 596(V)976(H)x 494(V)
Resolution420TVL480TVL540TVL650TVL
OSD menu NOYES
Video output1.0VP—P/75Ω
White balanceauto
Gain controlauto
Backlight compesationauto
Electronic shutter1/50(1/60)~1/120,000s
Gamma  correction 0.45
Sync  systeminternal
S/N radio >=48dB>=52dB
IR ledBuild in 2pcs powerful IR array leds
view distance 60m
Minimun  Illumination 0LUX(IR ON)
Operation lens 8mm F1.2 big lens; Options: 6mm, 12mm, 16mm (optional)
Protection levelIP65,  Side open housing waterproof design
Supplied voltageDC 12V,1000mA
Working temperature-10~60 ℃, support heater and fan



480TVL IR Array Waterproof Camera

480TVL IR Array Waterproof Camera

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Monitor the camera's 4-way, 8-channel What does it mean! The
Fourth, and eighth, sorted by number
Q:Wireless remote monitoring camera farthest to monitor how far
As long as there is a mobile Internet, where you can see, there is no distance limit. The
Q:What kind of monitoring camera is used in the store? 360 ° with the introduction of ordinary
If you require a higher, such as your shop to buy something slightly worth it, it is recommended to use the network HD, or cable through the HD, the resolution of this device is 4 times the normal, of course, the price is more than 1 times higher.
Q:What is the difference between monitoring cameras CCD1 / 3 and 1/4?
Only 1/3 inch, 2/3 of the lens through the aperture of 2/3 inch, so under the same lighting conditions, 2/3 lens allows more light through, thus indirectly enhance the camera's illumination, ? 16MM of the small perspective, according to far, 8MM lens perspective, according to the relative, relatively speaking, the principle of record: the greater the number, according to the more distant, the smaller the angle; the smaller the number, The more widely
Q:Monitor camera parameters how to see
Aperture: the aperture installed in the back of the lens, the greater the aperture open, the greater the amount of light through the lens, the higher the clarity of the image; the smaller the aperture, the smaller the amount of light through the lens, the image clarity low. Usually with F (luminous flux) to represent. F = focal length (f) / light aperture. In the camera's technical indicators, we can often see 6mm / F1.4 such parameters, which indicates that the focal length of the lens is 6mm, luminous flux of 1.4, then we can easily calculate the aperture of 4.29mm. In the case of the same focal length f, F value is smaller, the greater the aperture, reach the CCD chip, the greater the luminous flux, the better the lens.
Q:What is the difference and connection between the optical zoom and the digital zoom of the camera in the security monitoring?
First of all they can achieve the image of the amplification, is often said to push or pull away.
Q:What is the number of millimeters that monitor the camera?
Surveillance cameras generally see the 3.6 6 8 12 16MM These lenses are generally divided into wide-angle, ordinary, long focal length (these are fixed focus)
Q:How does the surveillance camera solve the backlight problem?
Second, always use the corresponding function of the camera, improve the backlit appearance. There are two kinds of cameras inside the security camera can be better to deal with the problem of camera backlight, one is a backlight compensation function of the camera, one is wide dynamic camera. Backlight compensation, also known as backlight compensation, is the screen dividends of several different areas, each area from the exposure. In some applications, the field of view can contain a very bright area, and the subject is included in the bright field surrounded by a picture of a bleak, no level. At this point because the AGC detects the signal level is not low, so the amplifier gain is very low, can not improve the brightness of the main screen, when the introduction of backlight compensation, the camera only the entire field of view of a sub-region, Area of the uniform signal level to determine the AGC circuit operating point.
Q:What is the meaning of monitoring the camera mm?
10mm or so focal length, is a wide-angle focal lengths. Mainly for landscape photography, documentary photography, according to the angle of view is very large, very shocking about 24mm focal lengths, is a small wide-angle, mainly for landscape photography, documentary photography, travel commemorative photo with this focal length of about 50mm The focal length is about the standard focal length, which is mainly used for landscape photography, portrait photography, documentary photography and so on. It is the focal length. The focal length is mainly used for the portrait, still life and so on. Focal length, the focal length is often used to capture, close-up and so on about the focal length of about 500mm, is a long focal length, the focal length has been able to shoot birds and other superfluous 500mm super telephoto, birds more convenient, Super telephoto is often used in sports photography
Q:Explosion-proof surveillance cameras can be installed directly on the top of the tank
Explosion-proof surveillance cameras can be considered Shenzhen Rongfang technology companies related products
