256HC Mast Section for Tower Crane

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT or L/C
Min Order Qty:
1 Set pc
Supply Capability:
1000 Sets Per Month pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Description of 256HC

We're specialized in tower crane parts, mast section. anchore frame, fixing angle, pin, bolt, various mech, assembly and spare parts, control box, resistance box and spare parts, drive room and spare parts, wire rope, pulley, cable etc

We supply different types of mast sections, anchorage collar and base frames for widely used tower crane models, with high performance and reasonable cost.

1.The steel material selected 100 % comes from our national large-scale steel corporations .

2.The critical materials that steel, welding material etc are all checked by chemical detection , then They are allowed into workshop for batch production.

3.Strictly conforms to drawing requirements, we make the products with 16 Manganese,40 Chromium and 45#steel etc .

4,Every parts of our products that pins ,axles,sleeves etc are strictly obey quenching and tempering procedures .

5,Every parts of our products strictly conforms to the procedure requirements : mill ,plane, polish, press ,test etc in turn.

6,As for have finished products ,we perform the requirements of theISO9001 Quality System and national standard strictly.

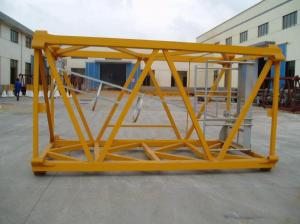

256HC Mast Section Specification

Size: 4.14m*2.3m*2.3m

Weight:2240kg(±10kg)

It is Equiped with the fixing bolts, inside ladder and resting platform

We supply different types of mast sections, anchorage collar and base frames for widely used tower crane models, with high performance and reasonable cost.

Packaging & Delivery:

Nude in containe

about 15-30 days after receiving T/T payment

 mast section  mast section
