190W Poly Solar Panel with High Efficiency Made in China

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1000 watt
Supply Capability:
1000000 watt/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Item specifice:

Material: Monocrystalline Silicon Max. Power(W): 190 Number of Cells(pieces): 60

Product Description:

Product Description

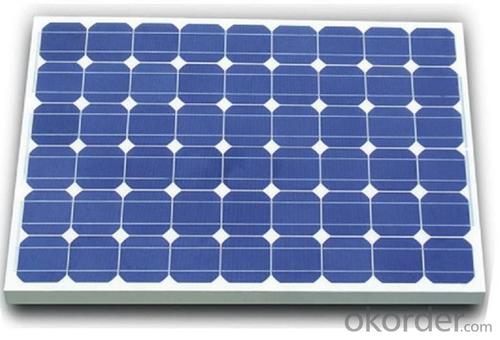

Solar module/panel with high efficiency solar cells
Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature.
Mechanical Characteristics
Dimensions: 996mm(L) x 1460mm(W) x 40mm(H)
Weight: 19.5kg
Solar Cells: Polycrystalline solar cells, 36 cells
Construction: Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA; Back: TPT
Frame: Clear anodized aluminum alloy Color: Silver
190W Poly Solar Panel with High Efficiency Made in ChinaProduct features:
1. The modules use high-quality imported polycrystalline or monocrystalline solar cells;
Enclosed by high-rigidity tempered glass, with excellent light transmittance and output performance;

2. Surface treated with reflection-reducing process, increasing the light absorption.
Back sealed with anti-aging EVA, resistant from moisture and corrosion.

3. The efficiency of our monocrystalline solar cell is over 17%, and polycrystalline panel is over 16%. We stipulate, the allowance of each panel's rated power has to be positive. Each panel is strictly tested before leaving the factory.

4. Our solar panel is designed with a lifetime of 25 years, and guaranteed that the power decline less than 10% within 10 years, and 20% within 20 years.

 Performance
 Rated Power[Pmax]190W
 Power Tolerance± 3%
 Nominal Voltage26.3V
 Design Life 25 years
 Electrical Characteristics
 Maximum Power            [Pmax]190W ± 3%
 Maximum Power Voltage [Vmp]26.3V ± 3%
 Maximum Power Current [Imp]7.23A ± 3%
 Short-Circuit Current       [Isc] 7.85A ± 3%
 Open-Circuit Voltage       [Voc]32.56V ± 3%
 Current Temperature Coefficient 0.08%/º C
 Voltage Temperature Coefficient - 0.32%/º C
 Power Temperature Coefficient -0.38%/º C




Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:solar panels and wind power help?
Both wind and solar take many years to break even economically, even with government subsidies (Using someones hard-earned tax dollars for your use). If purchased and installed with your own money, they will never pay for themselves because they will need replacement long before you save enough to pay the cost.
Q:What exactly is a solar panel?
A solar panel (photovoltaic module or photovoltaic panel) is a packaged interconnected assembly of solar cells, also known as photovoltaic cells. The solar panel can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications.
Q:advice what solar panels to purchase?
Are you talking about buying panels, or investing in stock? LDK does not make panels, they make solar grade silicon that goes into panels. I haven't heard bad buzz recently about any brand of panel. Therefore, I would go by price per watt alone. If you type in solar panel price into Google, you're sure to get directed to the major sellers, each of whom will sell many brands of panels. There are a couple other requirements that I would have for a serious system: ) Safety certification such as UL. This will be legally required for a grid-tied system. All panels except the really fly-by-night brands and factory seconds have this. 2) 25-year performance warranty. It's standard now for a manufacturer to guarantee that their panel will still produce 80% of the rated output after 25 years. Older panels may say 20 years. Junk panels will have no such warranty, or something ridiculous like 90 days or year. 3) Crystalline silicon. Monocrystalline or polycrystalline doesn't matter. Every few years, someone claims that they have an amorphous or thin-film technology that's durable. Being conservative, I'm still waiting for such things to be proven. Some crystalline panels have been in service since the 70's, although they are pitifully weak by today's standards. I've heard good things about the Sanyo HIT hybrid panels, but that's only from one person who had them installed.
Q:Where are the best places to put solar panels?
Solar panels have to be installed so that they face the equator, so they would have to point south in the U.S.. There are panels designed for exterior mounting and panels designed to go behind glass walls, I've even seen some that are made to replace roof shingles. You'll have to determine if they are worth it or not. Most companies that manufacture the panels rate the output based on the area in which you live. If you live in the north, payback is usually over 20 years, closer to the equator the payoff is quicker, but still a while. The question of worth is relative: are you trying to save money or help save the world? Any alternative to hydro carbon is great for the environment, but most are still very expensive.
Q:Is this a good kit for building a solar panel?
i like Eric's answer. that is conceivable to construct your man or woman panels via wiring mutually man or woman photograph voltaic cells. that is an exciting element of do, yet isn't a thank you to save money. in view that such panels are unlawful to hook up with the grid, you could result making use of them with batteries, and paying extra for electrical energy than in simple terms paying for it from the electrical powered company. photograph voltaic can ultimately save money, yet to do this, you often spend the equivalent of five, 0, possibly 5 years of electric expenses up front, then have decreased or close to-0 expenses thereafter. once you're obtainable, truthfully look into installation extra insulation and weatherproofing on your place. you additionally can evaluate paying for and installation a photograph voltaic water heater.
Q:How many Watts of solar panels?
With an RV, you can find lithium bromide water chiller based refrigerators and air conditioner that run mostly on propane with just a little bit of electricity for a pump and fans. The oven, stove and heat, you can also run off propane. A Microwave is probably 750 watts but only operates for a few minutes at a time. You'll just have to go through everything item by item and figure out how many watts each one will draw and how long each will run per day to size your solar panel. Don't forget that the sun will only shine for a few hours each day. In general, for a camper, the target isn't to produce all the power you need but to slow down the drain on the battery bank to last till you get back onto the road where the engine can recharge the batteries. Keep in mind that the lithium bromide chiller systems only operate when stationary and level so some people opt for conventional electric systems just for convenience which sounds like what you're trying to do. Best way to figure out how much power each is drawing is by measuring it while in use. It may be worth it to put a meter on the battery bank and go camping one weekend with a generator or put a meter on the main circuit breaker panel and camp where power is provided, just to see what your typical use is. You're far better off running as much as possible from propane.
Q:How do you connect a solar panel to a motor from an RC car?
Connecting them is not a problem: the solar cell has two leads or terminals, and so does the motor. The problem is that the panel from the calculator cannot supply very much current, and you need quite a bit for the motor. Also, the voltage is probably not more than 3 volts, and the motor needs probably six to twelve volts. If you have a voltmeter, check the output from the solar cell. You can get solar cells that will put out more current, but they will be bigger than the ones used for calculators. Even with these, you will probably need several in series to get enough voltage for the motor.
Q:Why do solar panels stop working?
If they get smashed, they won't work. Keep them clean, and they will last many years. I suppose there is a 'limit' to the effectiveness of the cells lifespan, but it must be more than 25-30 years. Just glass, metal frame and silica. No moving parts. Seems like a good deal.
Q:can I easily build my own solar panels for my home?
I honestly don't know but I have done lots of internet searches and there are several site where you can buy the plans to do this for around $49 and in the blurb it says that the hardware is very cheap to buy too. These are american based sites saying that all the hardware is easily available so why not give it a try though it could all be a con - $49 dollars might be worth a try
Q:Making solar panels bad for the environment?
Like any other materials, solar panels need to be manufactured. These components are usually imported, they use energy to produce and transport. However, once you install solar panels, they need little or no maintenance (except cleaning to maintain efficiency) and they use no other resources to produce power. Over their lifespan, they'll produce more energy than was used to be made, so on the whole good for the environment.
