18m Telescopic boom aerial working platform
- Ref Price:
- Loading Port:
- Tianjin
- Payment Terms:
- TT OR LC
- Min Order Qty:
- -
- Supply Capability:
- 100台 /month
- OKorder Service Pledge
- Quality Product
- Order Online Tracking
- Timely Delivery
- OKorder Financial Service
- Credit Rating
- Credit Services
- Credit Purchasing

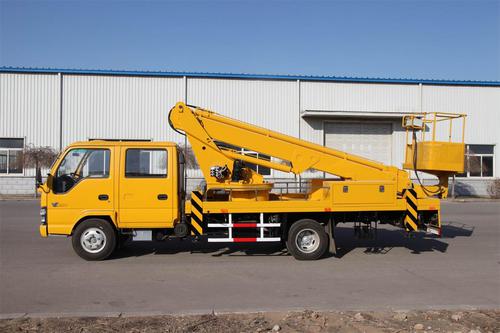

The max. working height of this aerial working platform is 18m.
It can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
We start this business from 1998, have many years of design and production experience.For the upper structure, we use HQ600 high strength steel, for some key components, we imported from Europe to assure product high quality.
Our product is durable and easy operation and maintenance, we can supply training for customer in our factory for free. pls find below detail parameters:
Bulletin No. | KFM5079JGK10S | |
External dimensions(mm) | 8010×2000×2950 | |
Structure type | Three-section telescopic boom | |
Working Cage | Internal size(mm) | 1100×700×1100 |
Rated loading(kg) | 200 | |
Max. Working height(mm) | 18000 | |
Max. Height from ground(mm) | 16300 | |
Max. Working radius(mm) | 12000 | |
Rotation angle(º) | ±90° | |
Working Boom | Lifting angle of main boom(º) | -13—78° |
Boom rack rotation angle(º) | 360 | |
Outrigger | Vertical span(mm) | 3930 |
Horizontal span(mm) | 3980 | |
Adjustment | Single adjustable |
Chassis Introduction
Traveling Performance Parameters | Chassis model | ISUZU NKRP77LLWCJAY |
Persons | 2+3 | |
Axle base (mm) | 3815 | |
Wheel base (front/rear)(mm) | 1504/1425 | |
Driving mode | 4×2 | |
Front suspension(mm) | 1504 | |
Rear suspension(mm) | 2470 | |
Approaching angle(º) | 24 | |
Departure angle(º) | 10 | |
Min. Turning diameter(mm) | 14000 | |
Min. Ground clearance(mm) | 190 | |
Engine | Engine model | 4KH1-TC |
Rated power(Kw/r/min) | 96/3400 | |
Torque(N、m/r/min) | 280/1700 | |
Max. Speed(km/h) | 70 | |
Specification of the tire | 7.00-16 | |
The whole weight(kg) | 6475 | |
Max. Weight with whole loading(kg) | 6800 |
