160W Poly Solar Panel with High Efficiency Made in China

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1000 watt
Supply Capability:
1000000 watt/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Item specifice:

Material: Polycrystalline Silicon Max. Power(W): 160 Number of Cells(pieces): 60

Product Description:

Product Description

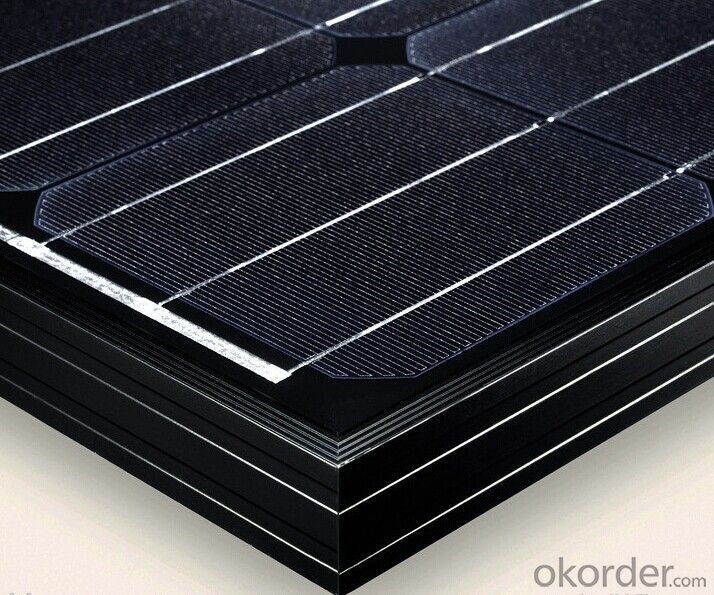

Solar module/panel with high efficiency solar cells
Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature.
Mechanical Characteristics
Dimensions: 670mm(L) x 1460mm(W) x 35mm(H)
Weight: 14.5kg
Solar Cells: Polycrystalline solar cells, 36 cells
Construction: Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA; Back: TPT
Frame: Clear anodized aluminum alloy Color: Silver
160W Poly Solar Panel with High Efficiency Made in China
Product features:
1. The modules use high-quality imported polycrystalline or monocrystalline solar cells;
Enclosed by high-rigidity tempered glass, with excellent light transmittance and output performance;

2. Surface treated with reflection-reducing process, increasing the light absorption.
Back sealed with anti-aging EVA, resistant from moisture and corrosion.

3. The efficiency of our monocrystalline solar cell is over 17%, and polycrystalline panel is over 16%. We stipulate, the allowance of each panel's rated power has to be positive. Each panel is strictly tested before leaving the factory.

4. Our solar panel is designed with a lifetime of 25 years, and guaranteed that the power decline less than 10% within 10 years, and 20% within 20 years.

 Performance
 Rated Power[Pmax]160W
 Power Tolerance± 3%
 Nominal Voltage36V
 Design Life 25 years
 Electrical Characteristics
 Maximum Power            [Pmax]160W ± 3%
 Maximum Power Voltage [Vmp]36V± 3%
 Maximum Power Current [Imp]4.44A± 3%
 Short-Circuit Current       [Isc]4.91A± 3%
 Open-Circuit Voltage       [Voc]44V± 3%
 Current Temperature Coefficient 0.08%/º C
 Voltage Temperature Coefficient - 0.32%/º C
 Power Temperature Coefficient -0.38%/º C




Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:DIY single solar panels with outlets?
Build okorder.com
Q:when building a solar panel should the diode be on the positive or negative side?
Bypass diodes would be in parallel with groups of solar cells in a panel. For example, if a module has 72 cells, maybe every 8 cells, there will be a bypass diode. A bypass diode does nothing except salvage some of the energy from the panel if some of the cells are shaded, and others are not. Or, if you have multiple panels in a series string, the bypass diodes allow the other panels in a string to continue to contribute energy when one panel is shaded. Unless you're forced to put the panel(s) where there will be shade during the day, the bypass diode does not matter. Commercial panels all include bypass diodes. Blocking diodes are generally NOT included on commercial panels. If you're going to a grid-tied inverter, you probably don't need one. There are stringent regulations on how panels must be grounded, and whichever side of the panel is grounded should not have a blocking diode. NEC regulations call for a continuous ground to earth. For example, if you have negative ground on your system, the blocking diodes, if any, should go on the positive terminal of the panel. By the way, if you're in the US or Canada, do understand that a home-built panel will not be legal to connect to a grid-tied system. And a grid-tied inverter that plugs into the wall will also be illegal. I'm only saying this because I don't want you to get hurt, or your house to burn down. Line power is nothing to be trifled with.
Q:solar panel installed house roof?
How does the cable wires stay on the solar panel? With wire retention clips (4 per module) that are used to wrap the wire on the underside of the module frame. The home run cables to the transition box (converts between types of wire with no electrical transformation occuring) or combiner box (joins multiple source circuits in parallel, with the positives fused for safety) are usually tied along the racking system components, and with conduit sections used as needed. Racking is another big part of the installation. Don't just make your own homemade wooden rack, as these will weather away to nothing very easily, and cause great failures. GET a professionally designed metal racking system. PV modules are EXPENSIVE. Don't let the racking system cause them to break. It also requires the inverter, if you intend it to connect to the main electric service. If using multiple inverters, you need an AC combining panelboard to join them prior to entering the main electric service. Otherwise, you need to think about how else you might be using them. If you are charging batteries, you need a charge controller.
Q:What exactly is a solar panel?
What a solar panel REALLY is is a political rip-off in which the government takes money from me to help you buy solar panels that produce a fraction of the power you could have bought with the money they stole and which required more volatile chemicals to manufacture than would have been created in the consumption of that same power.
Q:What does it mean when a solar panel is 50 watts?
Volts x amps = watts, so depending on what you want to run or charge will have to be taken into consideration. For example if you have a 0 volt TV @ 2 amps, then you're going to need 220 watts to power that. Best way to find out what it's volts and amps are, is to look on the back of the TV. But for batteries it doesn't matter, cause all batteries are is stored power, that can be later used, just use an inverter on them to convert DC to AC, also use a charger controller between the solar panels and the battery, cause you don't want the Solar panels to overcharge your battery and totally **** it up ______________________________________ But the more watts, the faster the power is returned; less watts, longer times. .
Q:Solar Panel - DC motor - Rated Power ? Functionality ?
solar cells are not rated in mah, they are rated in ma or amps. I'll assume this one is 50mA. Two in parallel will give you 300mA, so that will charge a 800mA-hr battery in 800/300 = 3 hours. Theoretically, in bright sunlight if the array is exactly at right angles to the sun's rays. The problem is, depending on the type of cells, the battery pack will need 8 volts or so to charge, and your solar cells won't deliver that. If the sun is at an angle, you may get only 3-5 volts. so you have to put them in series, so you will get only 50mA out of them, which will charge the battery in 6 hours of bright sunlight. Would two of my solar panels run this DC motor ? If the motor is .8 amps, you need the battery, the arrays are not near enough. Or are you attempting to replace the battery pack with the solar array? Your english makes that difficult to understand. If so, put them in parallel to get the 300mA, but that would run the .8 amp motor very slowly. If you had 2 of the solar panels, it might run at close to full speed if the sun is bright and shining directly on all the panels. But where did you get the .8 amps for the motor? The 800Mah rating of the battery has ZERO to do with the motor current. So the answer above is based on your number, which I suspect is totally wrong. .
Q:what kind of rays are used in solar panels?
Electromagnetic...meaning light rays, primarily in the visible spectrum. Ultraviolet and infrared light rays actually degrade most types of solar panels, limiting their useful lifetime. That said, your question is not stated well...so I'm not sure if that's the information you were looking for. Rays are not used in solar panels...rather solar panels are used to collect sunlight and convert it to energy--either directly into heat in the case of passive solar, or into electricity by the use of photovoltaic cells.
Q:Price and energy production of solar panels?
A small panel will not produce much power. When people put solar electric panels on their house with the goal of saving money, they generally put up a lot of large panels - 200 or 500 square feet worth. Its hard to save money with just one panel. The only way to get close on how much it will cost and whether that represents a savings is to get out your electric bills for the past year, and call a local solar installer for a quote. The system on our house cost $20,000 and we got back $8,000 in incentives, so $2,000 net. It can save money, but that will be over many, many years.
Q:how do solar photovoltaic panels work?
Hey E Girl, photovoltiac panels are pretty simple. They start with a solid block of silicone, and shave thin layers off of them, called wafers. Once you have about 72 of them, you take half of them and dope them with boron, then the other half are doped with phosphorous. Once that's done, they take one each phosphorous and boron wafer, and glue them together with a special conductive epoxy glue, and attach a wire to each wafer. When the two glued wafers are exposed to the sun, a reaction occurs that forces free electrons from the silicone particles from one wafer onto the other, and a voltage is generated between them, about /2 volt to be exact. Once all 36 pairs are glued together, they are wired in series, connecting the phosphourous wafer from one to the boron wafer on the next, and so on. If you start with 72 wafers, you'll have 36 pairs glued together when you are done. At /2 volt each, that makes a 8 volt panel, which is used to charge a 2 volt battery. The charging source always has to have a few more volts than the battery. These 36 pairs of cells are then arranged on some kind of back board, glued down, covered with acrylic glass and mounted in a frame. There are some great websites you can go to for more info, I will list some below. Did you know that there are over 00,000 homes and businesses in the US alone that use some level of solar power to operate their electrical systems? That's good news. We actually live in one of those homes, it is powered by both the wind and sun and heated with solar and wood. I hope this answers your question, good luck, and take care, Rudydoo
Q:stationary solar panel project?
For a mock up model you might try a fabric store or shelf paper with a pattern that mimics solar cells. Or just find a good pic on the net and print out several copies to glue on.
