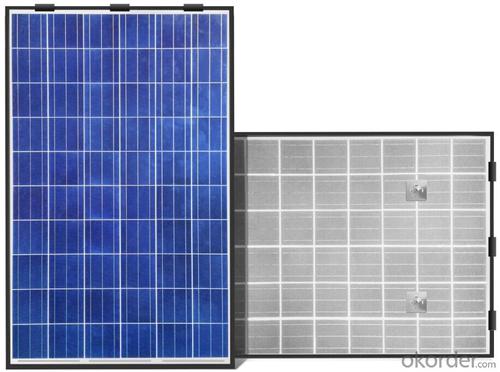

135W Poly Solar Panel with High Efficiency Made in China

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1000 watt
Supply Capability:
1000000 watt/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Item specifice:

Material: Monocrystalline Silicon Max. Power(W): 135 Number of Cells(pieces): 36

Product Description:

Product Description


Solar module/panel with high efficiency solar cells
Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature.
Mechanical Characteristics
Dimensions: 670mm(L) x 1220mm(W) x 35mm(H)
Weight: 13.5kg
Solar Cells: Polycrystalline solar cells, 36 cells
Construction: Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA; Back: TPT
Frame: Clear anodized aluminum alloy Color: Silver
135W Poly Solar Panel with High Efficiency Made in China
Product features:
1. The modules use high-quality imported polycrystalline or monocrystalline solar cells;
Enclosed by high-rigidity tempered glass, with excellent light transmittance and output performance;

2. Surface treated with reflection-reducing process, increasing the light absorption.
Back sealed with anti-aging EVA, resistant from moisture and corrosion.

3. The efficiency of our monocrystalline solar cell is over 17%, and polycrystalline panel is over 16%. We stipulate, the allowance of each panel's rated power has to be positive. Each panel is strictly tested before leaving the factory.

4. Our solar panel is designed with a lifetime of 25 years, and guaranteed that the power decline less than 10% within 10 years, and 20% within 20 years.

 Performance
 Rated Power[Pmax]135W
 Power Tolerance± 3%
 Nominal Voltage18.15V
 Design Life 25 years
 Electrical Characteristics
 Maximum Power            [Pmax]135W± 3%
 Maximum Power Voltage [Vmp]18.15V± 3%
 Maximum Power Current [Imp]7.44A± 3%
 Short-Circuit Current       [Isc]8.19A± 3%
 Open-Circuit Voltage       [Voc]21.75V± 3%
 Current Temperature Coefficient 0.08%/º C
 Voltage Temperature Coefficient - 0.32%/º C
 Power Temperature Coefficient -0.38%/º C


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Does making solar panels cause more pollution than they take away when used?
A study by the US Department of Energy shows that, depending on your solar panels, the energy payback is to 4 years. Solar panels usually last 25 years, so solar manufacturing is very green. That said, if you buy American made panels, it saves more carbon from the transport costs. Something to consider in choosing your panels.Actually, most panel manufacturers will recycle the panels after you’re through in 25 years. If they don’t, don’t buy those panels. However, it’s hard to say whether people will actually recycle them because most panels are still being used today. So it’s up to you find out about the manufacturer’s panel recycling program. From what I understand, they will come to you and take them away at no charge.
Q:Are solar panels actually efficient?
There is not a yes or no answer. But for the majority of the population it is a definite no. Because the energy needed to make a solar panel is more than the energy that a solar panel can return in its life time. so No for cities and urbanized areas because there is already existing infrastructure therefore you'll be wasting more energy getting them installed. And it is better and more efficient to have the more common energy sources for populated areas. However that being said it would be more efficient if you live in a remote area as it would not be worth it to build a huge electricity grid just to power one small house in the middle of no where.
Q:Using solar panels to replace electrical wiring?
A solar panel does not replace the wiring in your house. All it does is supply power to the house, the same way a line in from the street does. After the power gets to the house, regardless of how it got to your house, it goes through exactly the same wiring to get to outlets and lights. Your problem is not that the power coming in from the street is insufficient; the power company can supply all you'd ever need. The problem is that your houses are not wired to receive or use more power. You need to upgrade the service panel so it can bring more power into the house, and upgrade the wiring inside the walls so you have the number of outlets and lights required by today's codes and which most of us need for all the things we plug in these days. Solar panels, while they are cheaper than ever, are not a low cost thing to install. It will take years to recover their cost, and if the rules are the same where you are as they are here, you can't use the cost of installing them as a write-off against the cost of the house until you sell it. They are a capital expense, not a maintenance and repair deduction which you can use each year against the income you receive from the rental. Doing a conventional rewiring is your best bet.
Q:What solar panel do I need?
Your okorder.com/.. A solar panel of 40-50 square meters should suffice, at least in summer when the sun is high in the sky. It's about 500 square feet, or about 20 times 25 feet.
Q:Recycling Solar Panels?
It looks like you can. Although, I haven't been able to find like a drop off location or anything like that. Here's two phone numbers if you want to ask them. It's Sunday, and I'm assuming they're closed, otherwise I'd just call for you. San Diego (69) 562-783 or Berkeley (50) 843-3. It's a company called Borrego Solar. They look like a BIG solar company that specializes in commercial, residential and public sector turnkey, grid–connected solar electric systems. With over 25 years of experience. They sound like they would know about recycling, and at least be able to give you more information. I think because it's such a specialized item that is being recycled, there aren't going to be many options/drop off locations. Which ever option you choose (disassemble, or recycle as a whole) might depend on if you're looking to save the environment or make a buck. I got some information from the first link below, and the second link is to that Borrego company.
Q:How much does it cost a factory to make a solar panel?
First Solar recently announced that their costs to produce panels dropped below $ per watt. I don't know how much of that is accounting tricks. Of course, that doesn't mean that they would sell panels for that price - any capitalistic company is expected to drive the price up to what the market will bear. Crystalline silicon panel producers are coming in at about $2.50/watt right now for the best of them. But again, the selling price is what the market will bear.
Q:how often do you have to replace solar panels?
solar cells never really stop producing, they just reduce their output over the years. There are many solar panels still running at 75% of their initial output and have been up for over 40 years. Most manufacturer will give you a 25 or 30 year waranty. That means that they guarantee that the solar panels will have no less than a 0% drop in the amount of electricity produced by each panel in 30 years.
Q:Connect Power Outlet to Solar Panel?
The least expensive way would be to get a 500 W or preferably a higher rated UPS. The higher the rating, the more robust the inverter. You can get two year old ones cheap because most people don't realize that it's just a $2 battery that goes bad every two years. Get some Car batteries in parallel to build up more capacity. Deep cycle marine batteries or golf cart batteries are best. Connect the Solar Panel to the batteries via a FET diode, assuming your solar cells are wired to produce 2 V or better power (you probably would want at least 8 V), this is to charge the batteries when the sun is shining. A little bit of analog circuitry magic can create a current limiter based on a Darlington pair type layout. Connect the batteries to the rest of the UPS (don't plug it into the wall) and you can run 0 V 60 Hz AC devices off it's outlets. You may want to snip the wire going to the speaker so you won't hear the alarm. There's no way you could sync this to the grid so don't even try a grid tie in and the inverter in the UPS is only intended to run for 0 to 20 minutes so it may burn out however we've run UPS inverters constantly for months before when we needed a cheap power converter to change AC power frequencies before.
Q:how to build a solar panel?
Build okorder.com
Q:How does a solar panel work?
The term solar panel is best applied to a flat solar thermal collector, such as a solar hot water or air panel used to heat water, air, or otherwise collect solar thermal energy. But 'solar panel' may also refer to a photovoltaic module which is an assembly of solar cells used to generate electricity. In all cases, the panels are typically flat, and are available in various heights and widths.
